Use the Run Function widget in Studio

If you haven't created a Flow before, we suggest following the Create Your Flow steps in the chatbot tutorial to get one established.

Once you are inside of your newly created Studio Flow, create the prompt for dog breed by dragging a Send & Wait For Reply widget onto the Studio canvas. Name it and provide some text to prompt the user; the text can be anything you'd like for this example, something along the general lines of "which dog breed would you like to see?"

Here, we'll name the widget request-breed, and provide the following prompt:

Hello! Please respond with your requested dog breed to receive a photo! 🐶

Before we can proceed any further, we must first create the Function that we'll be calling in the next step of the Flow.

In order to run any of the following examples, you will first need to create a Function into which you can paste the example code. You can create a Function using the Twilio Console or the Serverless Toolkit as explained below:

Your Function is now ready to be invoked by HTTP requests, set as the webhook of a Twilio phone number, invoked by a Twilio Studio Run Function Widget, and more!

Studio Widgets can handle the elements of gathering user input and sending back a response text. However, custom logic like handling breed names that contain spaces lives best inside of a Function.

Let's add some code to this Function. Install axios as a Dependency, copy the following code example into your Function, save, and deploy your Service so that we can look more closely at how to integrate the Run Widget into a Studio Flow.

Note that this Function expects an input of breed, and returns JSON that includes some text and an image url.

Once your prompt is complete, drag a Run Function widget onto the canvas, and connect it to the Reply condition of the request-breed widget.

You'll be able to provide a name for the widget (get-doge-image), a configuration that will point this widget at your intended Function, and any parameters or arguments that you'd like to pass from the Flow to the Function when it's executed.

For this example, we'll point the Run Function widget at our Function, which was deployed to the doge Service in a production environment, and the path to the Function is /get-doge. Replace the Service, Environment, and Function configuration options with the values specific to the Function you created earlier.

Expand image

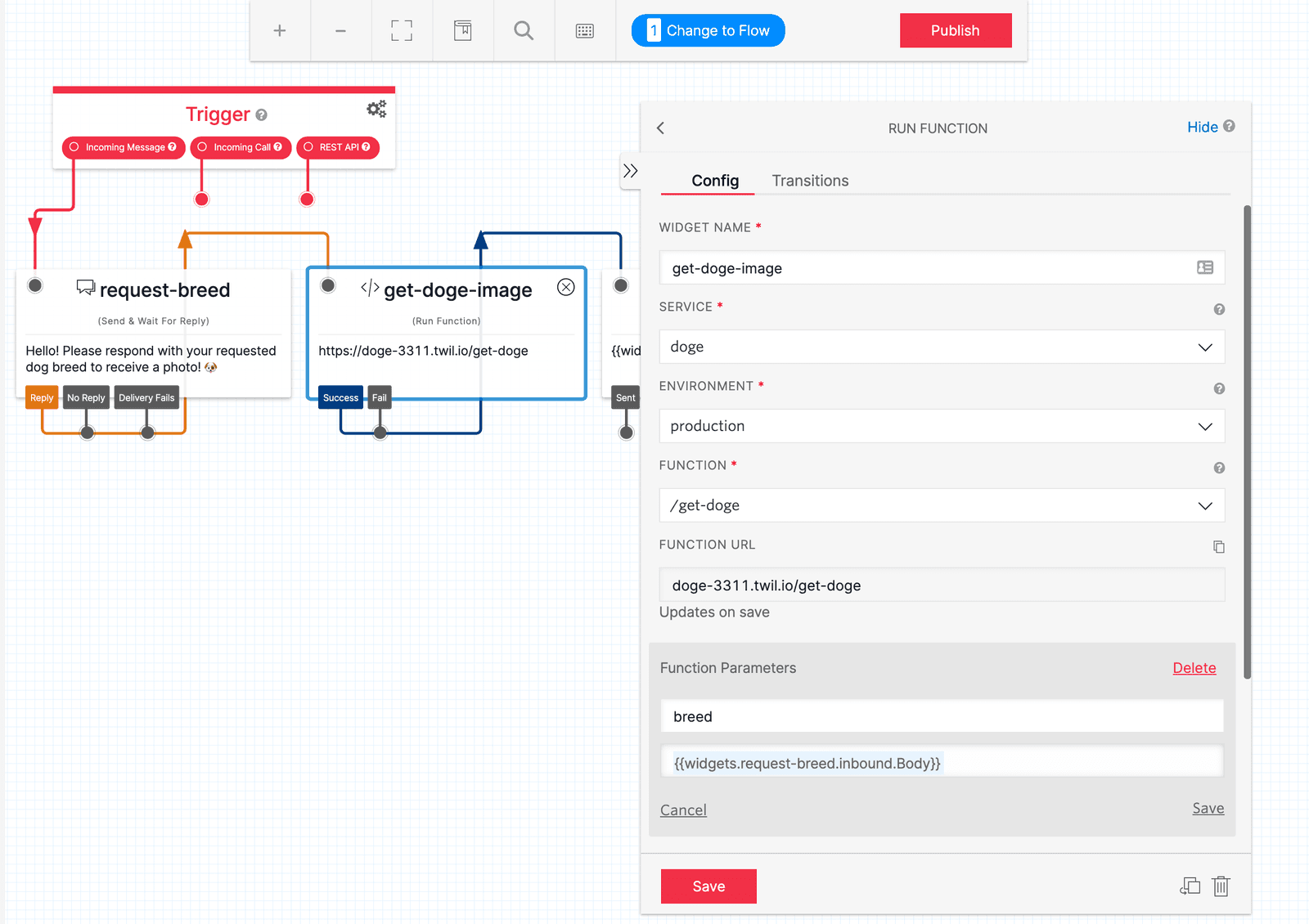

The final important configuration to note is the section labeled Function Parameters. Here, we define the parameters that we will pass to the Function's event object.

Here, we want to provide a variable called breed which is equal to the user's response to the prompt. We can do this by creating a new parameter, naming it breed, and setting the value to the user's response to the request-breed widget.

With our prompt and Run Function widgets in place, the last step is to generate a response to the user which incorporates the Function's result.

Drag a Send Message widget onto the canvas, and connect it to the Success condition of the get-doge-image widget.

The configuration for this widget is much shorter, and consists only of a name for the widget, the text body, and any media URL (s) you may want to attach. Luckily, the /get-doge Function returns text and uri values for us, so we can template these values into the config using Liquid.

In order to access the return value of a Run Function widget, you will need to access a special property called parsed. This object will contain any and all contents returned by the targeted Function.

For example, to access the text and url returned from the get-doge-image widget, the respective Liquid template strings would be the following:

1
{{widgets.get-doge-image.parsed.text}}
2
{{widgets.get-doge-image.parsed.url}}

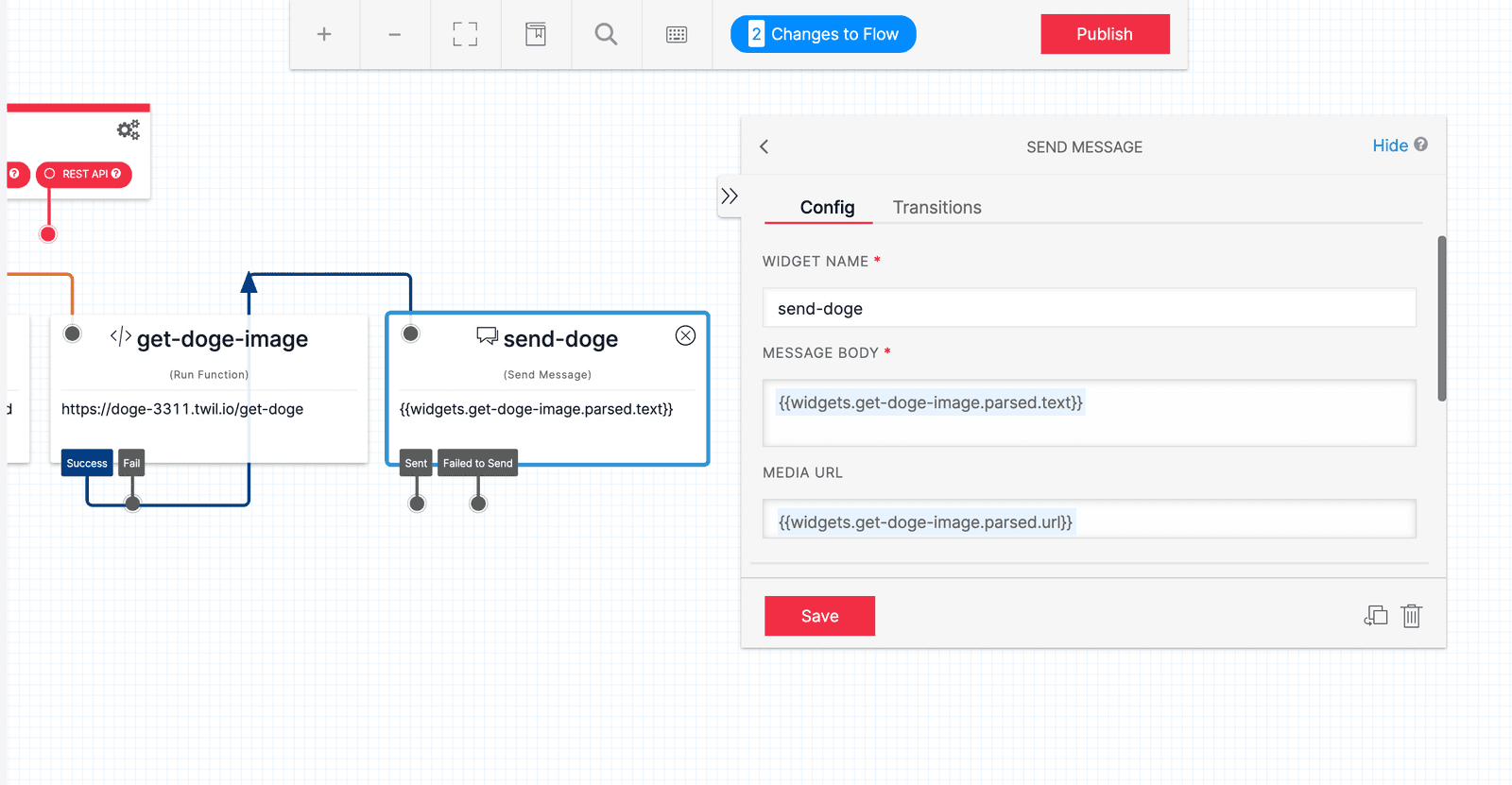

Once you have set Message Body to {{widgets.get-doge-image.parsed.text}} and Media URL to {{widgets.get-doge-image.parsed.url}} on the Send Message widget, your configuration should look like this:

Expand image

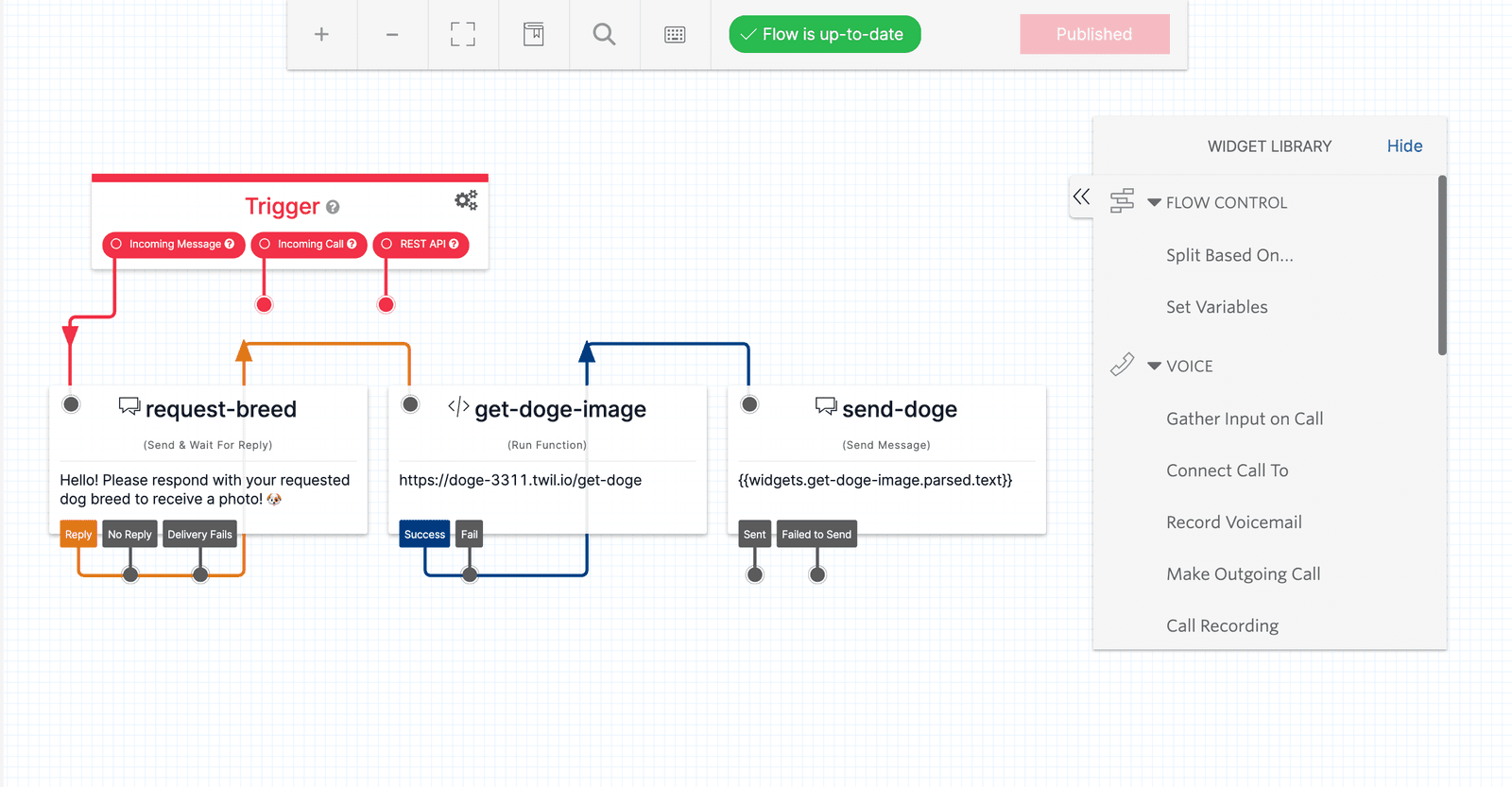

With the Function deployed and all the widgets in the Studio Flow connected and configured, all that's left is to see this little application in action. If you haven't already, click the Publish button on the Studio canvas to save all your progress on the Flow and ensure that its code is live.

Next, you'll want to connect this Flow to one of your Twilio phone numbers. You can follow these directions in order to do so.

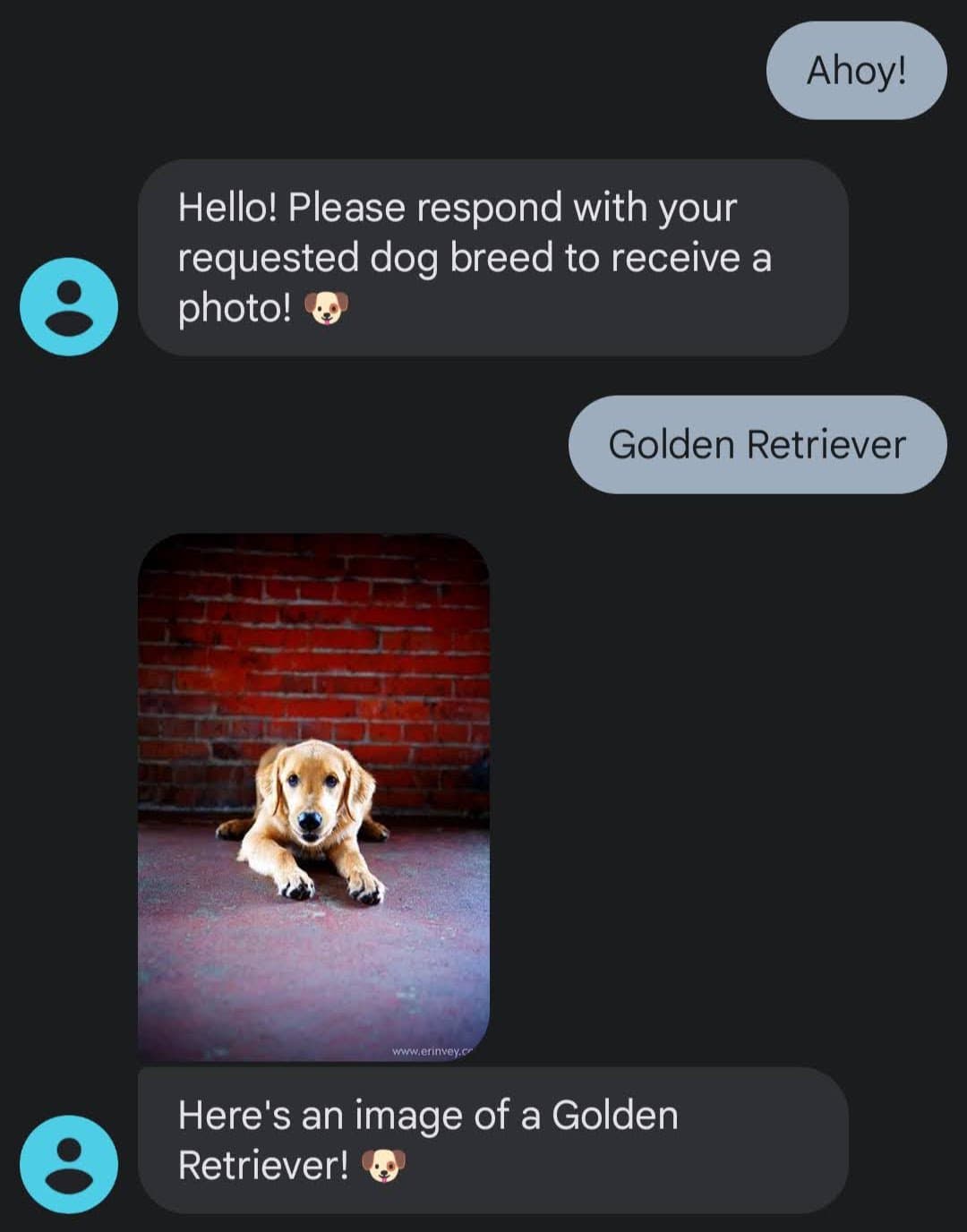

Once you have published your Flow and connected it to your Twilio phone number, send it a brief message to start the conversation. A simple "Ahoy!" will do. Respond to the incoming prompt with a breed of dog, and you will see an MMS of that breed after a momentary delay.

Expand image

So far, while the Function code does contain some catch logic, it otherwise doesn't really have any resilience to missing breed types or even network errors, and it definitely doesn't show that to the user. To improve the experience, let's see what happens if we expand our flow to handle the fail condition of get-doge-image.

To get started, drag a new Send Message widget onto the canvas, give it a name such as send-fail-message, and connect it to the Fail transition from get-doge-image. By doing this, we're introducing an alternative flow of logic for our application in case the Function runs into an error.

To take this a step further, connect the Sent condition of the newly made send-fail-message to get-doge-image. In doing so, you've just created a loop! If the Function fails to get a dog image, the flow will send the user a message then try to re-run the Function, and will do so until it succeeds.

Set the message body to {{widgets.get-doge-image.body}} Trying again!, click Save, and finally click Publish to publish this update to the flow.

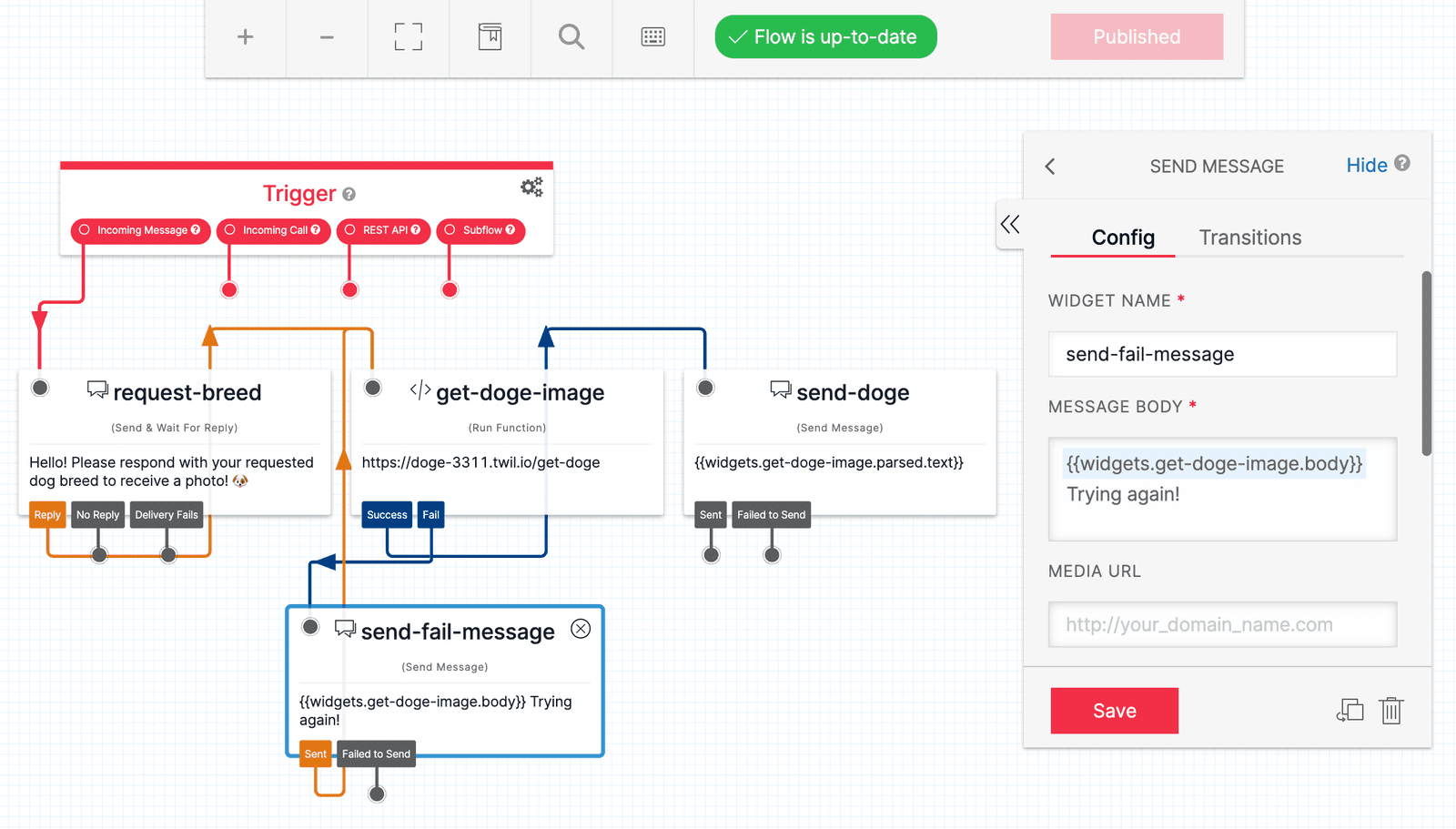

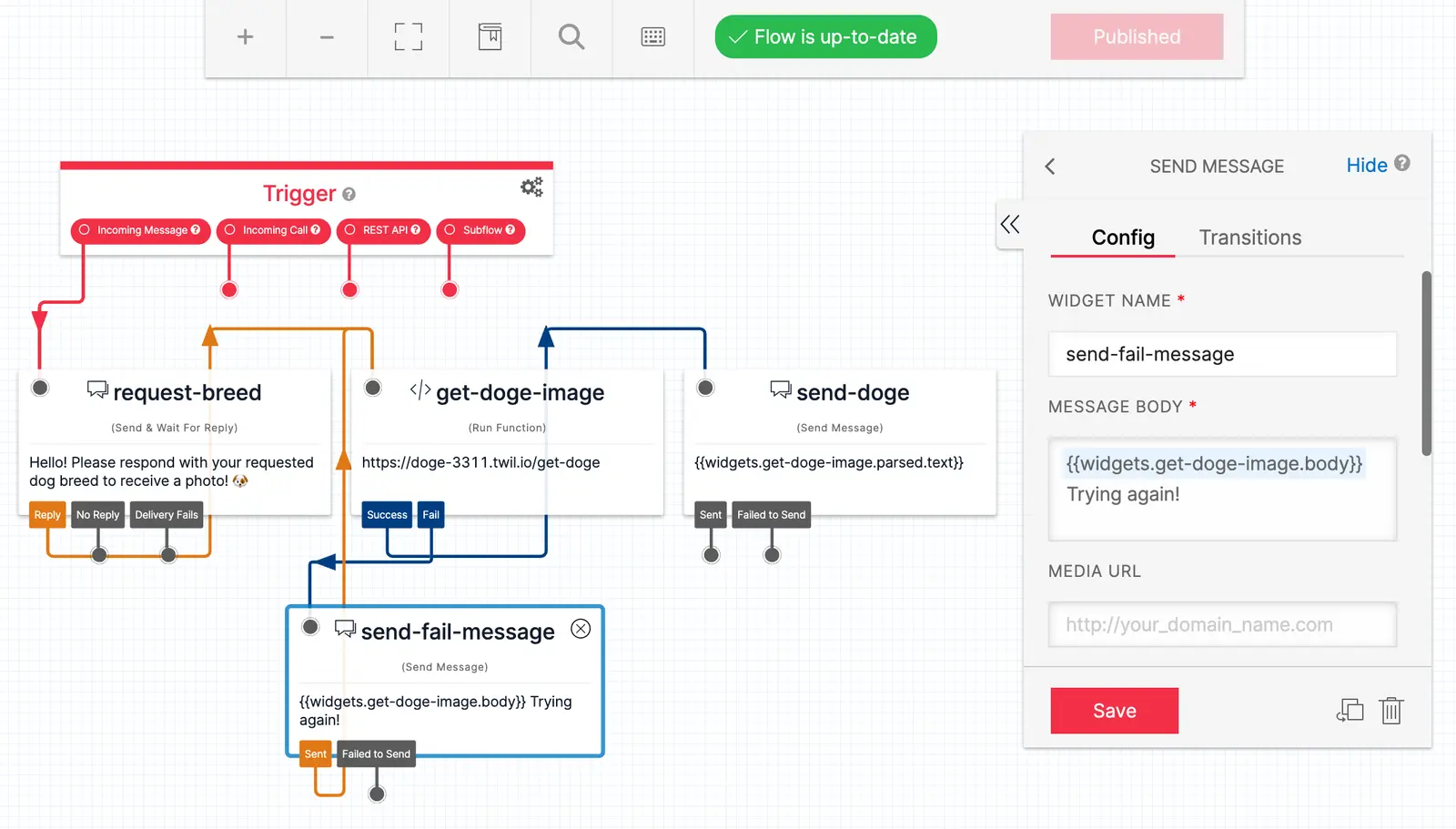

These connections and the configuration for send-fail-message should appear as shown below:

Expand image

With the flow updated to handle failures from our Function, let's quickly edit our code to make it artificially error-prone; only for the sake of testing, of course!

1
const axios = require('axios');
2

3
exports.handler = async (context, event, callback) => {
4
  // In Function Parameters, we defined `breed` as the inbound Body from
5
  // our Send & Wait For Reply Widget. We can access that via `event.breed`.
6
  // To minimize the potential for errors, lowercase and trim the user input.
7
  let breed = event.breed.toLowerCase().trim();
8

9
  // The Dog API also supports sub-breeds, so we need to handle that case.
10
  // For example, if the user requests "Golden Retriever", we need to format
11
  // the breed as "retriever/golden".
12
  if (breed.includes(' ')) {
13
    const [first, second] = breed.split(' ');
14
    breed = `${second}/${first}`;
15
  }
16

17
  const dogApiUrl = `https://dog.ceo/api/breed/${breed}/images/random`;
18

19
  try {
20
    // Let's introduce some inconsistency by randomly throwing an error
21
    if (Math.random() > 0.3) throw new Error('No doge~');
22
    // Make the request to the Dog API. Remember to use `await` since this
23
    // is an asynchronous request!
24
    const response = await axios.get(dogApiUrl);
25
    // Return the response to the Send & Wait For Reply Widget.
26
    return callback(null, {
27
      text: `Here's an image of a ${event.breed}! 🐶`,
28
      // The `message` property of the response is the URL of the dog image.
29
      url: response.data.message,
30
    });
31
  } catch (error) {
32
    // Remember to handle any errors that may occur!
33
    // This error message will be accessible as `widgets.get-doge-image.body`
34
    return callback(`Sorry, we couldn't find any ${event.breed}s 🥲`);
35
  }
36
};

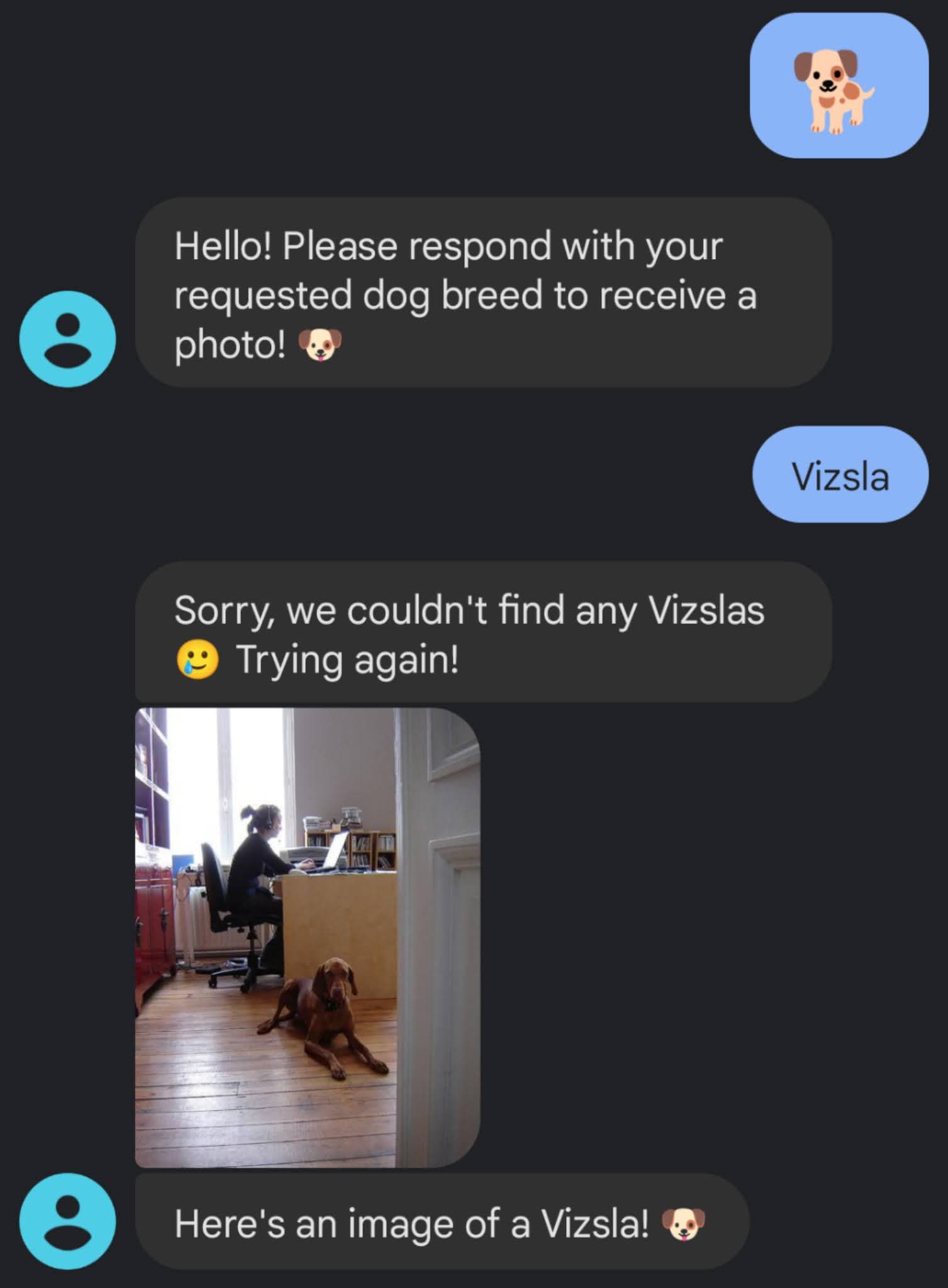

Deploy your Function with this updated code, and once completed, send a new message to your Twilio phone number. Between this code change and the new widget in the Studio flow, you will (most likely, this is random, of course) see one or more error messages, ultimately followed by an image of your requested dog breed!

Expand image

This is a very brief introduction to what is possible! Instead of a retry loop with a message, you could create an entirely new, logical flow of widgets where you ask the user for other information; your imagination is the only true limit here.
