twilio/flows

Overview

With WhatsApp Flows, you create an in-app, multi-screen experience that a user receives and submits all within WhatsApp.

A business sends a Flow as part of an approved Content Template. The templated message contains a button to open the attached Flow in the WhatsApp UI. Within the Flow, you can include text, images, and several input components. End users respond with single-choice, multi-choice, toggle, short-text, long-text, and date-picker inputs. You can organize these components across up to 10 screens.

`twilio/flows` versus `whatsapp/flows`

The twilio/flows Content Template type works well for Flows that don't need complex inputs across multiple screens or endpoint features. You can create twilio/flows in the Content Template Builder or the Content API. Compare with whatsapp/flows that require creating the Flow in the WhatsApp Business Account before sending with the Twilio Content API.

(warning)

Flows limitations

Flows aren't designed to transmit HIPAA Eligible Service or PCI data. Don't use them in workflows that require HIPAA or PCI compliance.

If you need to transmit sensitive information, use Message Redaction. Message Redaction isn't yet compatible with Studio, Proxy Service, or Functions. Don't send Flows that contain sensitive information through these products or services.

Supported options for end users

Send a multi-screen form that includes several questions.
Collect text input, selections, and picker answers.
Include images, links, and clarifying text on each screen.

Supported channels

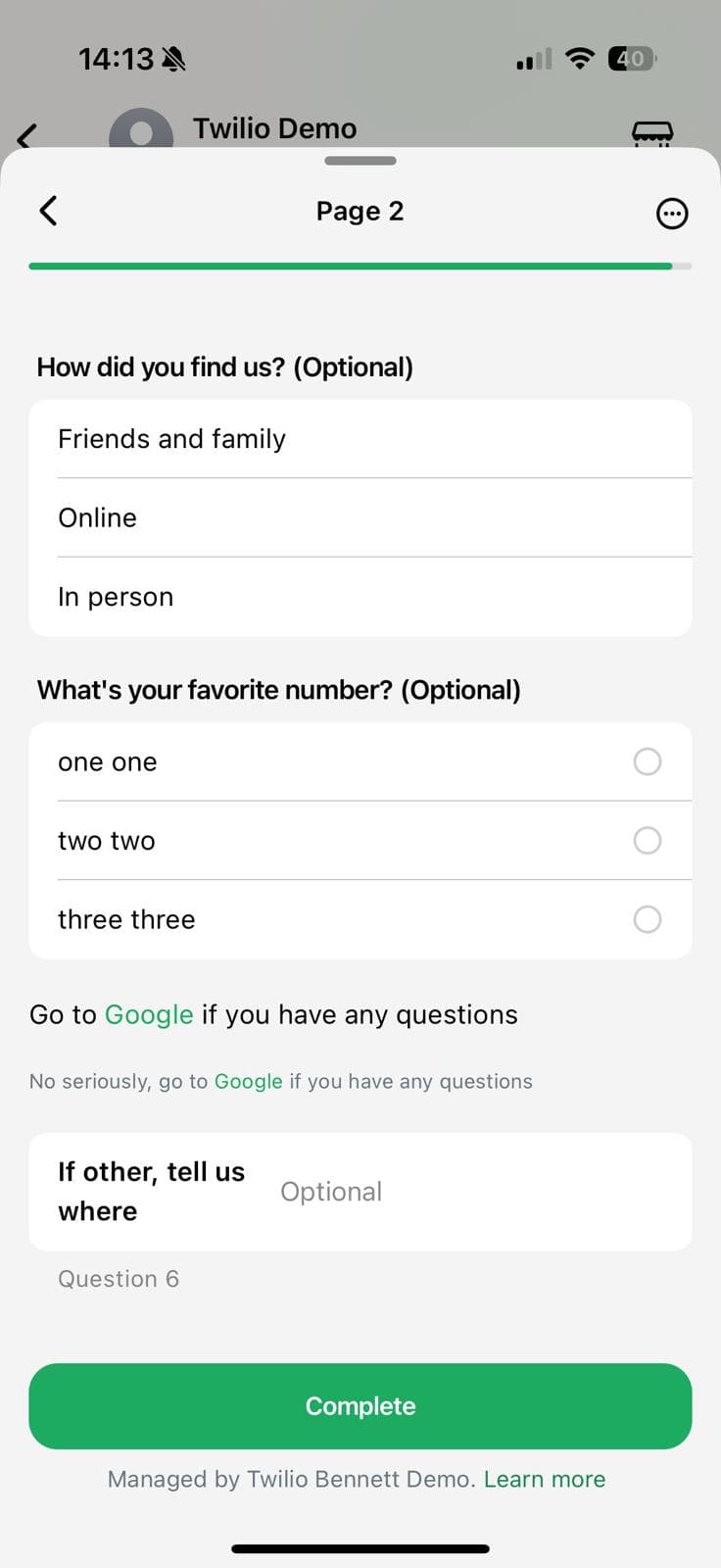

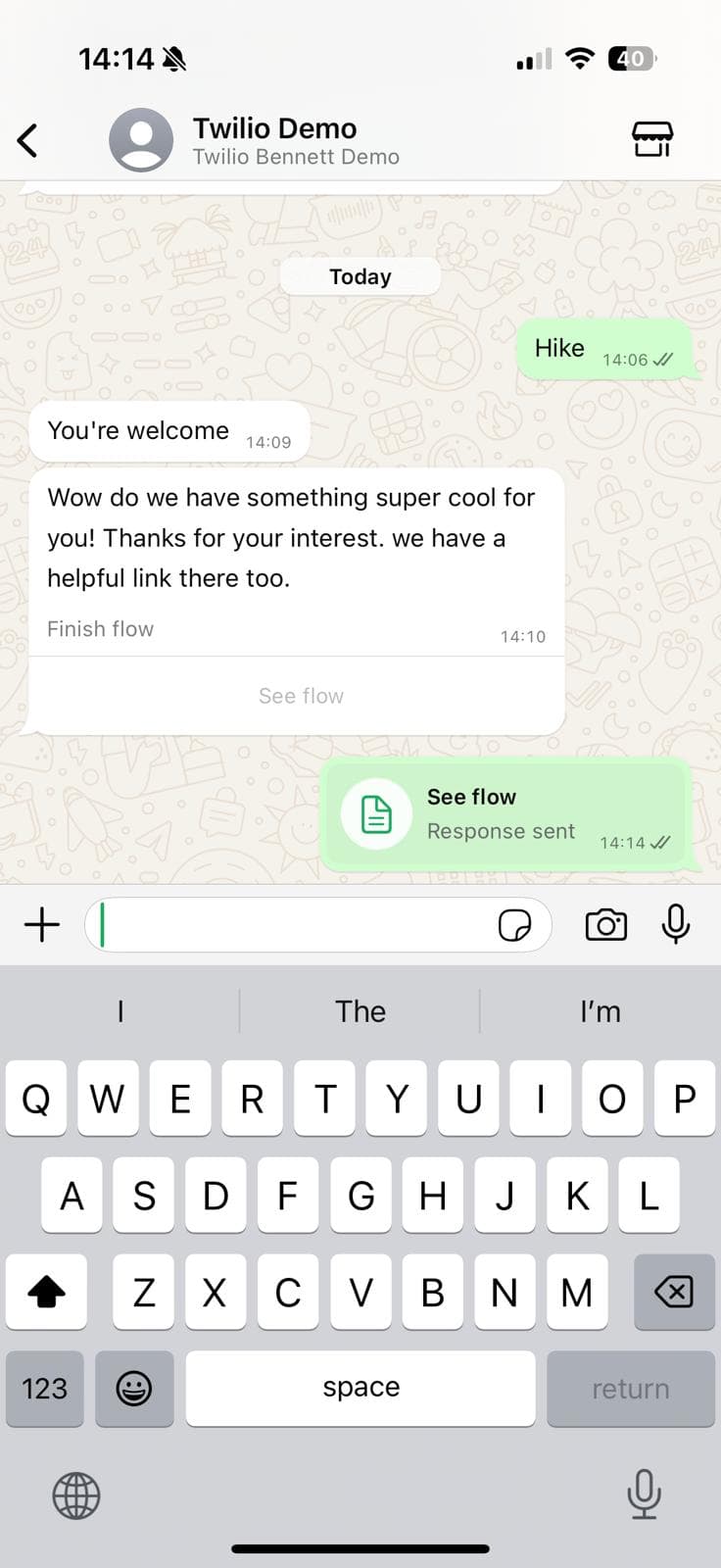

Message preview

Create a Flow

To create a Flow in the Content Template Builder:

Create a twilio/flows Content Template.
Submit the content template for approval. Choose the appropriate category (UTILITY or MARKETING).
When you submit the twilio/flows Content Template, Meta publishes the Flow in your WhatsApp Business Account. You can view the publishing status in the Content Template approvals list. You can't use Flows without an approved content template.

Data parameters

Parameter	Type	Required	Variable support	Description
`body`	string	Yes	Yes	Text of the templated message that delivers the Flow. Maximum length: 1,024 characters
`subtitle`	string	No	No	Footer of the message. Maximum length: 1,024 characters
`media_url`	string	No	Yes	Media on the initial Flow message. Supports `.png`, `.jpeg`, `.mp4`, and `.pdf`. The domain must be static; the path can be variable.
`type`	enum	Yes	No	Flow category. Valid values: `SIGN_UP`, `SIGN_IN`, `APPOINTMENT_BOOKING`, `LEAD_GENERATION`, `CONTACT_US`, `CUSTOMER_SUPPORT`, `SURVEY`, `OTHER`
`button_text`	string	Yes	No	Text displayed on the button that starts the Flow.
`pages`	array	Yes	No	Definitions of each page's components. Maximum: 10 pages.

`pages` properties

Property	Type	Required	Variable support	Description
`id`	string	Yes	No	Identifier returned in the webhook. Maximum length: 20 characters
`title`	string	No	No	Title text that appears above the Flow page.
`subtitle`	string	No	No	Subtitle text that appears at the top of the Flow page.
`layout`	array	Yes	No	Components shown on the page. Each component must be one of the following: `SHORT_TEXT`,`LONG_TEXT`,`SINGLE_SELECT`,`MULTI_SELECT`,`DATE_PICKER`,`LIST`,`TEXT_HEADING`,`TEXT_SUBHEADING`,`TEXT_CAPTION`,`TEXT_BODY`,`RICH_TEXT`,`MEDIA`,`FOOTER`

`layout` properties

SHORT_TEXT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `SHORT_TEXT`.
`text`	Yes	string	Yes (entire string must be variable or static)	Helper text.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`required`	No	Boolean	No	Defaults to `false`. Whether the user must answer the question.
`input_type`	No	enum	No	Defaults to `TEXT`. Valid values: `TEXT`, `NUMBER`, `EMAIL`, `PASSWORD`, `PASSCODE`, `PHONE`.

LONG_TEXT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `LONG_TEXT`.
`text`	Yes	string	Yes (entire string must be variable or static)	Helper text.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`required`	No	Boolean	No	Defaults to `false`. Whether the user must answer the question.

SINGLE_SELECT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `SINGLE_SELECT`.
`text`	Yes	string	Yes (entire string must be variable or static)	Helper text.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`options`	Yes	string	Yes (entire string must be variable or static)	Stringified array that contains `title` and `id` pairs. If you use a variable, the variable must replace the entire string. Example: `"[{\"id\":\"ff\",\"title\":\"Friends and family\"}]"`
`options.title`	Yes	string	Yes	Display title for the option. Can be a variable.
`options.id`	Yes	string	Yes	Option identifier returned in the webhook. Can be a variable.

MULTI_SELECT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `MULTI_SELECT`.
`text`	Yes	string	Yes (entire string must be variable or static)	Helper text.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`options`	Yes	string	Yes (entire string must be variable or static)	Stringified array that contains `title` and `id` pairs. If you use a variable, the variable must replace the entire string. Example: `"[{\"id\":\"ff\",\"title\":\"Friends and family\"}]"`
`options.title`	Yes	string	Yes	Display title for the option. Can be a variable.
`options.id`	Yes	string	Yes	Option identifier returned in the webhook. Can be a variable.

DATE_PICKER object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `DATE_PICKER`.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`min_date`	Yes	string	Yes (entire string must be variable or static)	Start date in `YYYY-MM-DD` format.
`max_date`	Yes	string	Yes (entire string must be variable or static)	End date in `YYYY-MM-DD` format.
`unavailable_dates`	Yes	string	Yes (entire string must be variable or static)	Stringified array of unavailable dates in `YYYY-MM-DD` format.
`name`	No	string	Yes (entire string must be variable or static)	Name of the date picker object.

LIST object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `LIST`.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`options`	Yes	string	Yes (entire string must be variable or static)	Stringified array that contains `title` and `id` pairs. If you use a variable, the variable must replace the entire string. Example: `"[{\"id\":\"ff\",\"title\":\"Friends and family\"}]"`
`options.title`	Yes	string	Yes	Display title for the option. Can be a variable.
`options.id`	Yes	string	Yes	Option identifier returned in the webhook. Can be a variable.

TEXT_HEADING object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `TEXT_HEADING`.
`text`	Yes	string	Yes (entire string must be variable or static)	Markdown-formatted text. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

TEXT_SUBHEADING object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `TEXT_SUBHEADING`.
`text`	Yes	string	Yes (entire string must be variable or static)	Markdown-formatted text. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

TEXT_BODY object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `TEXT_BODY`.
`text`	Yes	string	Yes (entire string must be variable or static)	Markdown-formatted text. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

TEXT_CAPTION object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `TEXT_CAPTION`.
`text`	Yes	string	Yes (entire string must be variable or static)	Markdown-formatted text. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

RICH_TEXT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `RICH_TEXT`.
`text_list`	Yes	array	Yes (entire string must be variable or static)	Array of Markdown-formatted strings. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

MEDIA object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `MEDIA`.
`url`	Yes	string	Yes	Image URL. Supports `.jpeg` and `.png` formats.

FOOTER object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `FOOTER`.
`label`	Yes	string	Yes	Text displayed in the button used to continue the Flow.

Create a `twilio/flows` Content Template and check its approval status

Content Templates API - Create a Flow Template

1curl -X POST 'https://content.twilio.com/v1/Content' \
2-H 'Content-Type: application/json' \
3-u $TWILIO_ACCOUNT_SID:$TWILIO_AUTH_TOKEN \
4-d '{
5   "friendly_name": "info_flow",
6   "language": "en",
7   "types": {
8  "twilio/flows": {
9    "body": "Wow do we have something super cool for you! Thanks for your interest. we have a helpful link there too.",
10    "button_text": "See flow",
11    "subtitle": "Finish flow",
12    "pages": [
13      {
14        "id": "id_one",
15        "next_page_id": "id_two",
16        "title": "Page 1",
17        "layout": [
18          {
19            "label": "Name",
20            "type": "SHORT_TEXT",
21            "text": "Question 1",
22            "required": true
23          },
24          {
25            "label": "Email",
26            "type": "SHORT_TEXT",
27            "text": "Question 2",
28            "input_type": "EMAIL"
29          },
30          {
31            "label": "Address",
32            "type": "LONG_TEXT",
33            "text": "Question 3"
34          }
35        ]
36      },
37      {
38        "id": "id_two",
39        "next_page_id": null,
40        "title": "Page 2",
41        "subtitle": "Subtitle of Page 2",
42        "layout": [
43          {
44            "label": "How did you find us?",
45            "type": "SINGLE_SELECT",
46            "options": "[{\"id\":\"ff\",\"title\":\"Friends and family\"},{\"id\":\"oo\",\"title\":\"Online\"},{\"id\":\"ip\",\"title\":\"In person\"}]"
47          },
48          {
49            "label": "What is your favorite number?",
50            "type": "MULTIPLE_SELECT",
51            "options": "[{\"id\":\"one\",\"title\":\"one one\"},{\"id\":\"two\",\"title\":\"two two\"},{\"id\":\"three\",\"title\":\"three three\"}]"
52          },
53          {
54            "type": "TEXT_BODY",
55            "text": "Go to [Google](https://www.google.com/) if you have any questions"
56          },
57          {
58            "type": "TEXT_CAPTION",
59            "text": "No seriously, go to [Google](https://www.google.com/) if you have any questions"
60          },
61          {
62            "label": "If other, tell us where",
63            "type": "SHORT_TEXT",
64            "text": "Question 6"
65          }
66        ]
67      }
68    ],
69    "type": "OTHER"
70  }
71}
72}'

Output

1{
2    "account_sid": "ACXXXXXXXXXXXXX",
3    "date_created": "2025-01-22T22:35:25Z",
4    "date_updated": "2025-01-22T22:35:25Z",
5    "friendly_name": "info_flow",
6    "language": "en",
7    "links": {
8        "approval_create": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXX/ApprovalRequests/whatsapp",
9        "approval_fetch": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXX/ApprovalRequests"
10    },
11    "sid": "HXXXXXXXXXXXX",
12    "types": {
13        "twilio/flows": {
14            "body": "Wow do we have something super cool for you! Thanks for your interest. we have a helpful link there too.",
15            "button_text": "See flow",
16            "media_url": null,
17            "pages": [
18                {
19                    "id": "id_one",
20                    "layout": [
21                        {
22                            "input_type": "TEXT",
23                            "label": "Name",
24                            "name": null,
25                            "required": true,
26                            "text": "Question 1",
27                            "type": "SHORT_TEXT"
28                        },
29                        {
30                            "input_type": "EMAIL",
31                            "label": "Email",
32                            "name": null,
33                            "required": null,
34                            "text": "Question 2",
35                            "type": "SHORT_TEXT"
36                        },
37                        {
38                            "input_type": null,
39                            "label": "Address",
40                            "name": null,
41                            "required": null,
42                            "text": "Question 3",
43                            "type": "LONG_TEXT"
44                        }
45                    ],
46                    "next_page_id": "id_two",
47                    "subtitle": null,
48                    "title": "Page 1"
49                },
50                {
51                    "id": "id_two",
52                    "layout": [
53                        {
54                            "label": "How did you find us?",
55                            "name": null,
56                            "options": "[{\"id\":\"ff\",\"title\":\"Friends and family\"},{\"id\":\"oo\",\"title\":\"Online\"},{\"id\":\"ip\",\"title\":\"In person\"}]",
57                            "required": null,
58                            "type": "SINGLE_SELECT"
59                        },
60                        {
61                            "label": "What's your favorite number?",
62                            "name": null,
63                            "options": "[{\"id\":\"one\",\"title\":\"one one\"},{\"id\":\"two\",\"title\":\"two two\"},{\"id\":\"three\",\"title\":\"three three\"}]",
64                            "required": null,
65                            "type": "MULTIPLE_SELECT"
66                        },
67                        {
68                            "text": "Go to [Google](https://www.google.com/) if you have any questions",
69                            "type": "TEXT_BODY"
70                        },
71                        {
72                            "text": "No seriously, go to [Google](https://www.google.com/) if you have any questions",
73                            "type": "TEXT_CAPTION"
74                        },
75                        {
76                            "input_type": "TEXT",
77                            "label": "If other, tell us where",
78                            "name": null,
79                            "required": null,
80                            "text": "Question 6",
81                            "type": "SHORT_TEXT"
82                        }
83                    ],
84                    "next_page_id": null,
85                    "subtitle": "Subtitle of Page 2",
86                    "title": "Page 2"
87                }
88            ],
89            "subtitle": "Finish flow",
90            "type": "OTHER"
91        }
92    },
93    "url": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXX",
94    "variables": {}
95}

Fetch an approval status for a `twilio/flows` Content Template

You can check the status of a Content Template submitted for WhatsApp approval:

Fetch content and approvals

1// Download the helper library from https://www.twilio.com/docs/node/install
2const twilio = require("twilio"); // Or, for ESM: import twilio from "twilio";
3
4// Find your Account SID and Auth Token at twilio.com/console
5// and set the environment variables. See http://twil.io/secure
6const accountSid = process.env.TWILIO_ACCOUNT_SID;
7const authToken = process.env.TWILIO_AUTH_TOKEN;
8const client = twilio(accountSid, authToken);
9
10async function listContentAndApprovals() {
11  const contentAndApprovals = await client.content.v1.contentAndApprovals.list({
12    limit: 20,
13  });
14
15  contentAndApprovals.forEach((c) => console.log(c.dateCreated));
16}
17
18listContentAndApprovals();

Response

1{
2  "contents": [],
3  "meta": {
4    "page": 0,
5    "page_size": 10,
6    "first_page_url": "https://content.twilio.com/v1/ContentAndApprovals?PageSize=10&Page=0",
7    "previous_page_url": null,
8    "next_page_url": null,
9    "url": "https://content.twilio.com/v1/ContentAndApprovals?PageSize=10&Page=0",
10    "key": "contents"
11  }
12}

Send your `twilio/flows` template

Sending a twilio/flows Content Template is the same process as sending other Content Templates using the Programmable Messaging APIs. For detailed steps, see Send templates created with the Content Template Builder.

Send a WhatsApp Flow Content Template message

1// Download the helper library from https://www.twilio.com/docs/node/install
2const twilio = require("twilio"); // Or, for ESM: import twilio from "twilio";
3
4// Find your Account SID and Auth Token at twilio.com/console
5// and set the environment variables. See http://twil.io/secure
6const accountSid = process.env.TWILIO_ACCOUNT_SID;
7const authToken = process.env.TWILIO_AUTH_TOKEN;
8const client = twilio(accountSid, authToken);
9
10async function createMessage() {
11  const message = await client.messages.create({
12    contentSid: "HXaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
13    from: "whatsapp:+14155238886",
14    to: "whatsapp:+15017122661",
15  });
16
17  console.log(message.sid);
18}
19
20createMessage();

Response

1{
2  "account_sid": "ACaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
3  "api_version": "2010-04-01",
4  "body": "Hello! 👍",
5  "date_created": "Thu, 24 Aug 2023 05:01:45 +0000",
6  "date_sent": "Thu, 24 Aug 2023 05:01:45 +0000",
7  "date_updated": "Thu, 24 Aug 2023 05:01:45 +0000",
8  "direction": "outbound-api",
9  "error_code": null,
10  "error_message": null,
11  "from": "whatsapp:+14155238886",
12  "num_media": "0",
13  "num_segments": "1",
14  "price": null,
15  "price_unit": null,
16  "messaging_service_sid": "MGaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
17  "sid": "SMaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
18  "status": "queued",
19  "subresource_uris": {
20    "media": "/2010-04-01/Accounts/ACaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa/Messages/SMaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa/Media.json"
21  },
22  "to": "whatsapp:+15017122661",
23  "uri": "/2010-04-01/Accounts/ACaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa/Messages/SMaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa.json"
24}

Receive a Flow submission

When a user submits a Flow in WhatsApp, Twilio sends a webhook request to the messaging endpoint that you've configured on your WhatsApp sender. The InteractiveData field contains the names and user-submitted values for the Flow's structured data components.

You can also prepare a follow-up experience for the user, such as a message to indicate that you have received the completed flow.

Flow-specific webhook fields

Field	Description
`FlowData`	Raw data string from the channel provider.
`InteractiveData`	User-provided information in JSON format.

twilio/flows

Overview

Flows limitations

Supported options for end users

Supported channels

Message preview

Create a Flow

Data parameters

pages properties

layout properties

Create a twilio/flows Content Template and check its approval status

Output

Fetch an approval status for a twilio/flows Content Template

Response

Send your twilio/flows template

Response

Receive a Flow submission

Flow-specific webhook fields

`pages` properties

`layout` properties

Create a `twilio/flows` Content Template and check its approval status

Fetch an approval status for a `twilio/flows` Content Template

Send your `twilio/flows` template
