TwiML Redirect Widget

The TwiML Redirect Widget requires only one piece of information to function properly:

Note: Studio does not actually make the HTTP request to this URL. Instead, Studio prints the TwiML, which instructs Twilio Voice or Messaging to make a new request to the URL you specify.

If you want to pass parameters to a TwiML Redirect URL from your Studio Flow, you can pass them in a query string as part of your URL.

For example, if you want to pass the Digits variable from the Gather Input on Call Widget, you should enter the following in the URL field for the TwiML Redirect widget:

https://example.com/myfunction?Digits={{widgets.MY_WIDGET_NAME.Digits}}

To return control of the call or message to Studio, you must specify a <Redirect> to your Studio Webhook URL and append ?FlowEvent=return. Studio will inject any additional parameters specified in the return URL to your Studio context. These parameters will then be available in your Studio Flow via Liquid template variables.

Example:

1
<Response>
2
  <Say>Returning you back to the Studio Flow.</Say>
3
  <Redirect>https://webhooks.twilio.com/v1/Accounts/{AccountSid}/Flows/{FlowSid}?FlowEvent=return&amp;foo=bar</Redirect>
4
</Response>

The URL parameter foo illustrated above will be passed automatically into your Flow and can be referenced via Liquid as {{widgets.your_redirect_widget_name.foo}}.

The TwiML Redirect Widget accepts a few configuration options that you can use to further customize how Studio redirects to your URL that hosts TwiML, and returning control back to Studio:

These events trigger transitions from this Widget to another Widget in your Flow. For more information on working with Studio transitions, see this guide.

Please note that your Studio Flow will not be able to regain control of a Voice call that is timed out after passing the call to your TwiML Redirect URL. The only way your Studio Flow can regain control of a Voice call that has been passed to a TwiML URL is if you first append the parameter FlowEvent=return to your URL. This will tell the TwiML that executes to return control back to Studio when execution is complete.

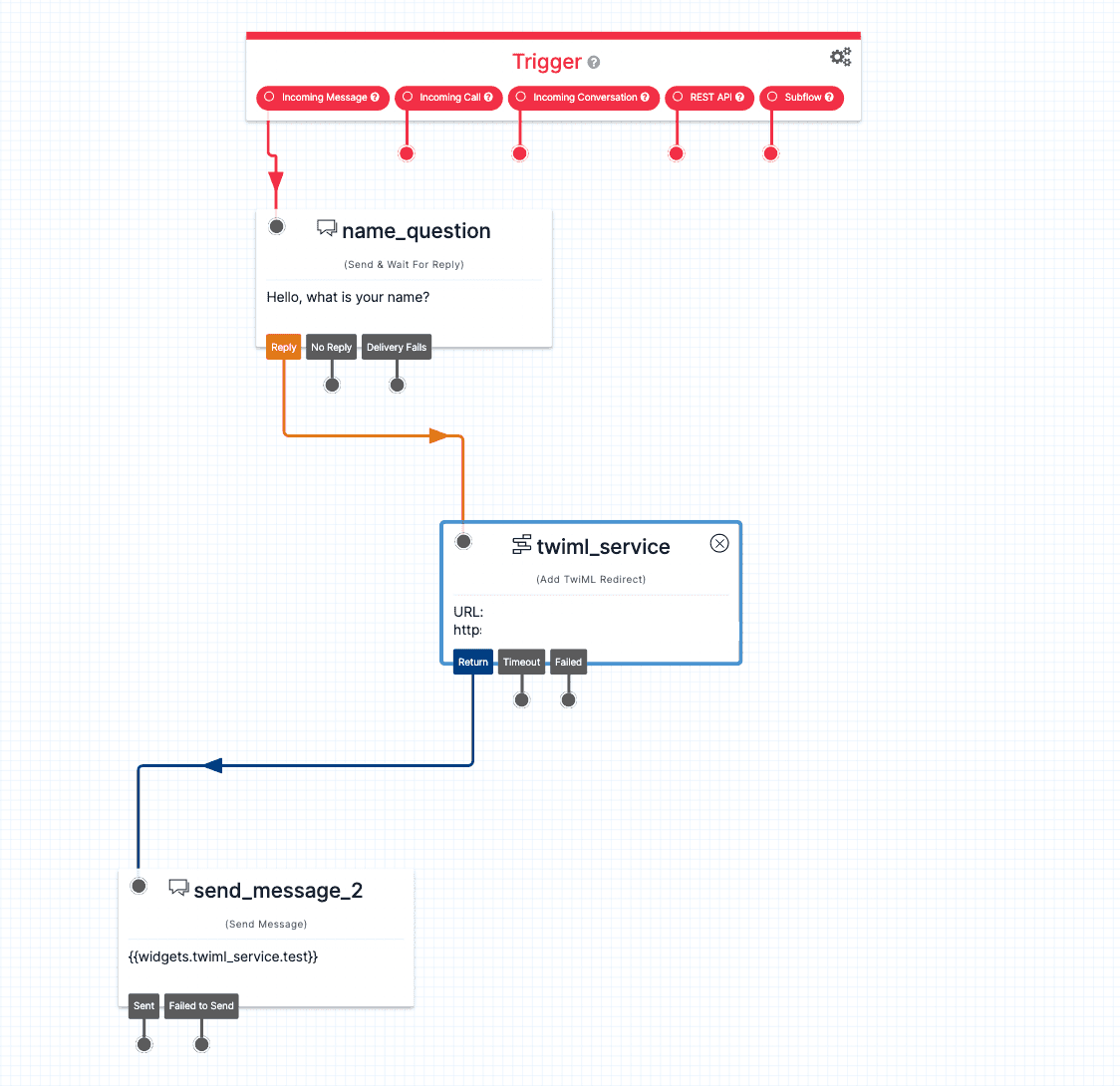

You may want to send and receive information to and from a TwiML document. This example shows a Studio Flow using the TwiML Redirect Widget to run a TwiML document hosted by Twilio's TwiML Bins.

Expand image

The Flow first asks the user to enter their name. When the user responds, the response is captured within the Send & Wait for Reply Widget's {{widgets.MY_WIDGET_NAME.inbound.Body}} Liquid variable — MY_WIDGET_NAME being name_question in this example. The TwiML Redirect Widget will then retrieve and run the TwiML document located at the provided URL.

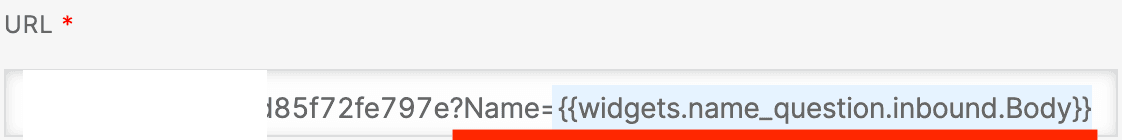

The TwiML Redirect Widget is able to pass variables to the document by including them as URL parameters within the URL field. In this example, the variable Name is passed into the TwiML document with the user's response designated as the value.

Expand image

Separate the URL where the TwiML document is located and the variables to pass in using the "?" character. If you would like to pass in more than one variable, separate each by the "&" character.

The TwiML document at the URL is hosted by Twilio's TwiML Bins. TwiML Bins support Mustache Templates which allow you to reference variables passed in as URL parameters. Name was passed in as a variable in this example and can be referenced as {{Name}}. Learn more about Mustache Templates. It will send a message to the user with the Name variable that was passed in. It will then redirect back to the Studio Flow using the webhook of the Flow, found by clicking on the Trigger Widget under the WEBHOOK URL field, along with the variable FlowEvent set to a value of "return". It also sends back a variable called test that has a value set to "success".

1
<Response>
2
    <Message>
3
      Hello {{Name}}! Sent from a TwiML document.
4
      </Message>
5
      <Redirect>
6
https://webhooks.twilio.com/v1/Accounts/AC8a124fa47560fc6bbd3f182474e5fd28/Flows/FWdd7ddbc880eca07b3f519bef81d4df8f?FlowEvent=return&amp;test=success
7
      </Redirect>
8
</Response>

Access any variables sent from a TwiML document using {{widgets.MY_WIDGET_NAME.VARIABLE_NAME}}, where MY_WIDGET_NAME refers to the TwiML Redirect Widget's name and VARIABLE_NAME refers to the variable sent from the TwiML document. In this example, the {{widgets.twiml_service.test}} Liquid variable holds the value of the variable test sent by the document.

Want to learn more about how you can use TwiML Redirects to customize your Studio Flow? Check out these guides:

• Learn how to write TwiML for handling Voice calls
• Learn how to write TwiML for handling messages
• Learn how to use a TwiML Bin to host serverless TwiML that your Studio Flow can use

We can't wait to see what you build!
