Video Source APIs - iOS

The VideoSource APIs describe producers and consumers of video content. A VideoSource produces content for a LocalVideoTrack. Sources have the following properties.

• VideoSources produce VideoFrames, and deliver them to VideoSinks.
• VideoSources receive format requests, and deliver requests to VideoSinks.
• The recommended maximum frame size is 1920x1080.
• The recommended maximum frame rate is 30 frames per second.
• The recommended pixel format is NV12.

A VideoSink consumes content from a VideoSource. Sinks have the following properties.

• VideoSinks handle format requests from VideoSources.
• VideoSinks consume frames from VideoSources.

In the next section, we will show you how to use the CameraSource API.

A CameraSource is a VideoSource that produces content from the built-in cameras. This is probably the first kind of video that you want to share, so it is a good place to begin.

First, we want to create a CameraSource, and use that source to create a LocalVideoTrack.

1
guard let cameraSource = CameraSource() else {
2
    // Unable to initialize a camera source
3
    return
4
}
5
var videoTrack = LocalVideoTrack(source: cameraSource)

Now that we've setup our Track and Source, it's time to start producing frames from one of the built-in cameras. Let's use a CameraSource utility method to help us discover a front facing AVCaptureDevice.

1
guard let frontCamera = CameraSource.captureDevice(position: .front) else {
2
    // The device does not have a front camera.
3
    return
4
}
5

6
// Start capturing with the device that we discovered.
7
cameraSource.startCapture(device: frontCamera)

In this example, CameraSource is automatically determining the best format to capture in. Typically, 640x480 at 30 frames / second is used as the default value.

Next, we want to connect to a Room with the LocalVideoTrack we created earlier.

1
let connectOptions = ConnectOptions(token: accessToken){ (builder) in
2
    builder.roomName = "my-room"
3
    if let localVideoTrack = self.localVideoTrack {
4
        builder.videoTracks = [localVideoTrack]
5
    }
6
}
7
self.room = TwilioVideoSDK.connect(options: connectOptions, delegate: self)

While you can select a single device at start time, CameraSource also supports switching devices while it is already running. For example, you could switch from a front facing device to a rear facing device.

1
guard let rearCamera = CameraSource.captureDevice(position: .back) else {
2
    // The device does not have a rear camera.
3
    return
4
}
5

6
cameraSource.selectCaptureDevice(rearCamera)

At some point after connecting to a Room, you might decide that you want to stop sharing video from the camera. Start with unpublishing the Track.

1
// Unpublish the Track. We will no longer be sharing video in the Room.
2
if let participant = self.room?.localParticipant,
3
    let videoTrack = self.localVideoTrack {
4
    participant.unpublishVideoTrack(videoTrack)
5
}

Finally, we will stop the source and destroy the objects.

1
// Stop capturing from the device.
2
self.camera?.stopCapture(completion: { (error) in
3
    if let theError = error {
4
        print("Error stopping capture:", theError as Any)
5
    }
6

7
    self.camera = nil
8
    self.localVideoTrack = nil
9
})

An AVCaptureDevice can produce video in many possible formats. CameraSource offers utility methods to discover formats that are suitable for video streaming. Consider executing the following code on your iOS device:

1
// Assume that we discovered "frontDevice" earlier.
2

3
let formats = CameraSource.supportedFormats(captureDevice: frontDevice)
4
print(formats)

When this code is run on an iPhone X with iOS 12.4, the following formats are returned.

Once you've determined which format you would like to use, you can provide it when starting capture.

1
// Formats are ordered by increasing dimensions. Start with the smallest size.
2
cameraSource.startCapture(device: frontDevice,
3
                          format: formats.firstObject as! VideoFormat,
4
                          completion: nil)

In some applications, it may be important to change formats at runtime with as little disruption to the camera feed as possible.

1
// Select another format for the front facing camera.
2
cameraSource.selectCaptureDevice(frontDevice,
3
                                 format: formats.lastObject as! VideoFormat,
4
                                 completion: nil)

Device formats afford quite a lot of flexibility, but there are some cases that AVCaptureDevice does not support out of the box. For example, what if you wanted to:

1. Produce square video.
2. Produce video that fills a portrait iPhone X / XR / XS screen.

These are both cases where you want to publish video in a different aspect ratio or size than AVCaptureDevice can produce. That is okay, because format requests are here to help with this problem.

1
let frontDevice = CameraSource.captureDevice(position: .front)!
2
let formats = CameraSource.supportedFormats(captureDevice: frontDevice)
3

4
// We match 640x480 directly, since it is known to be supported by all devices.
5
var preferredFormat: VideoFormat?
6
for format in formats {
7
    let theFormat = format as! VideoFormat
8
    if theFormat.dimensions.width == 640,
9
        theFormat.dimensions.height == 480 {
10
        preferredFormat = theFormat
11
    }
12
}
13

14
guard let captureFormat = preferredFormat else {
15
    // The preferred format could not be found.
16
    return
17
}
18

19
// Request cropping to 480x480.
20
let croppingRequest = VideoFormat()
21
let dimension = captureFormat.dimensions.height
22
croppingRequest.dimensions = CMVideoDimensions(width: dimension,
23
                                               height: dimension)
24

25
self.camera?.requestOutputFormat(croppingRequest)
26
self.camera?.startCapture(device: frontDevice,
27
                          format: captureFormat,
28
                          completion: nil)

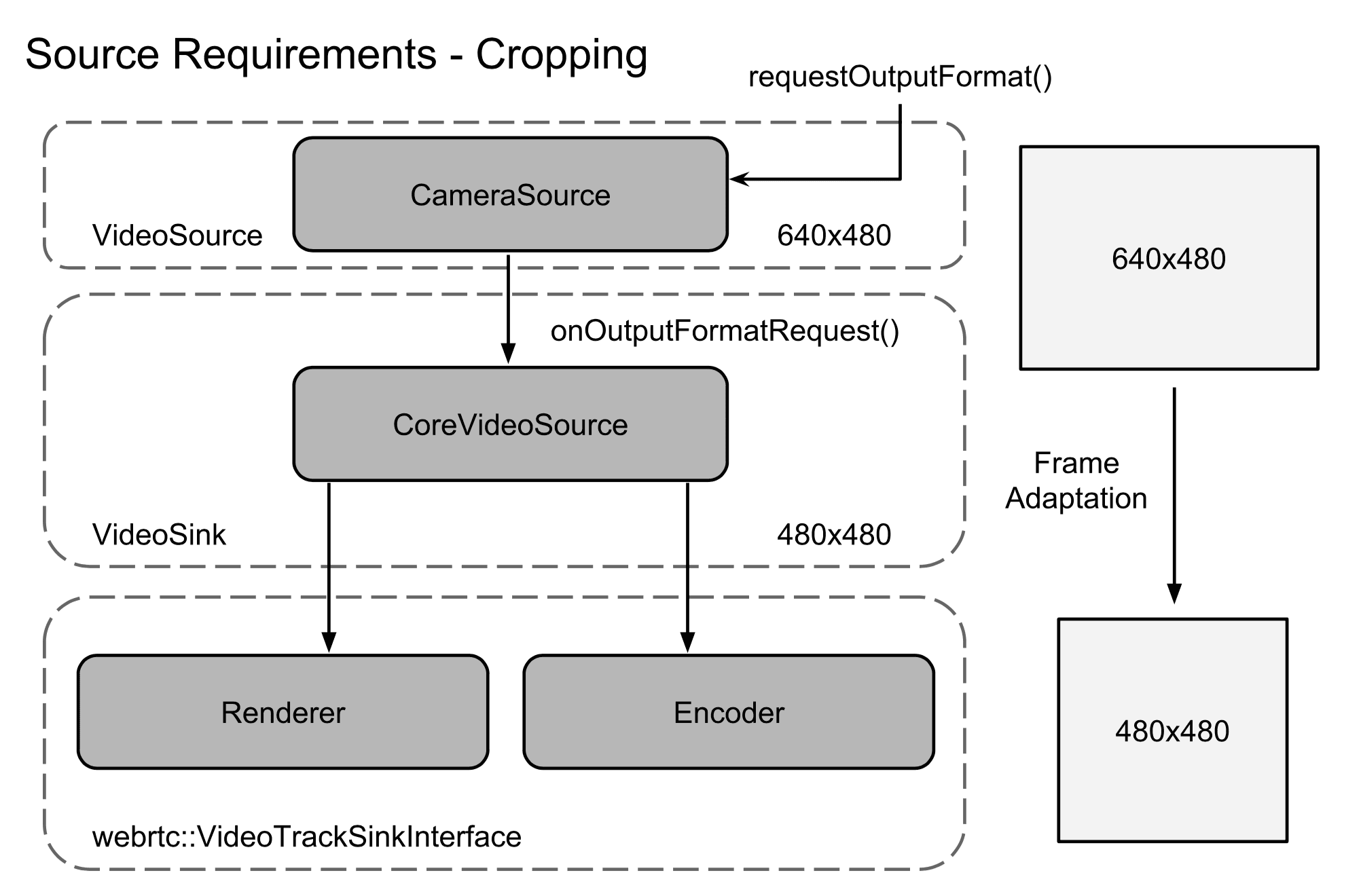

The following diagram shows the effect of a format request on frames produced by CameraSource.

Expand image

Take a look at the iOS QuickStart Example to learn more about using CameraSource.

The CameraSource provides flexibility in how it tracks video orientation for capture and preview. By default, the CameraSource monitors -[UIApplication statusBarOrientation] for orientation changes. With the addition of the UIWindowScene APIs in iOS 13, CameraSource now has a property, CameraSourceOptions.orientationTracker, which allows you to specify how the CameraSource should track orientation changes.

The orientationTracker property accepts an object that implements the CameraSourceOrientationTracker protocol. A default implementation, UserInterfaceTracker is provided with the SDK. UserInterfaceTracker monitors for changes in UIInterfaceOrientation at the application or scene level. For example, if you wish to track orientation changes based on a scene, you would provide the scene to track when creating the CameraSourceOptions.

1
// Track the orientation of the key window's scene.
2
let options = CameraSourceOptions { (builder) in
3
    if let keyScene = UIApplication.shared.keyWindow?.windowScene {
4
        builder.orientationTracker = UserInterfaceTracker(scene: keyScene)
5
    }
6
}
7
let camera = CameraSource(options: options, delegate: self)

You will also need to forward UIWindowScene events from your UIWindowSceneDelegate to keep UserInterfaceTracker up to date as the scene changes.

1
// Forward UIWindowScene events
2
func windowScene(_ windowScene: UIWindowScene,
3
                 didUpdate previousCoordinateSpace: UICoordinateSpace,
4
                 interfaceOrientation previousInterfaceOrientation: UIInterfaceOrientation,
5
                 traitCollection previousTraitCollection: UITraitCollection) {
6
    UserInterfaceTracker.sceneInterfaceOrientationDidChange(windowScene)
7
}

You can also manually control how orientation is tracked. For example, you might decide to use UIDevice instead of UIScene to determine the orientation of the camera. To do this, you would create your own implementation of CameraSourceOrientationTracker which invokes the - (void)trackerOrientationDidChange:(AVCaptureVideoOrientation)orientation callback method when the device's orientation changes.

VideoSources are real-time producers of content. Importantly, to optimize for low latency delivery of individual frames is not guaranteed. The video pipeline continuously monitors network and device conditions and may respond by:

• Reducing the number of bits allocated to the encoder.
• Downscaling the video to a smaller size.
• Dropping video frames at input.
• Cropping (minimal, to ensure pixel alignment).

If you would like to implement your own VideoSource, or learn about advanced usage of CameraSource then an excellent place to begin is with our sample code.

• ARKitExample
• ReplayKitExample
• ScreenCapturerExample
• VideoApp
