Creating Tasks and Accepting Reservations: Create a Task using the REST API

1
from flask import Flask, request, Response
2
from twilio.rest import Client
3

4
app = Flask(__name__)
5

6
# Your Account Sid and Auth Token from twilio.com/user/account
7
account_sid = "{{ account_sid }}"
8
auth_token  = "{{ auth_token }}"
9
workspace_sid = "{{ workspace_sid }}"
10
workflow_sid = "{{ workflow_sid }}"
11

12
client = Client(username=account_sid, password=auth_token)
13

14
@app.route("/assignment_callback", methods=['GET', 'POST'])
15
def assignment_callback():
16
    """Respond to assignment callbacks with empty 200 response"""
17

18
    resp = Response({}, status=200, mimetype='application/json')
19
    return resp
20

21
@app.route("/create_task", methods=['GET', 'POST'])
22
def create_task():
23
    """Creating a Task"""
24
    task = client.taskrouter.workspaces(sid=workspace_sid).tasks.create(
25
        workflow_sid=workflow_sid,
26
        attributes='{"selected_language":"es"}'
27
    )
28
    print(task.attributes)
29
    resp = Response({}, status=200, mimetype='application/json')
30
    return resp
31

32
if __name__ == "__main__":
33
    app.run(debug=True)

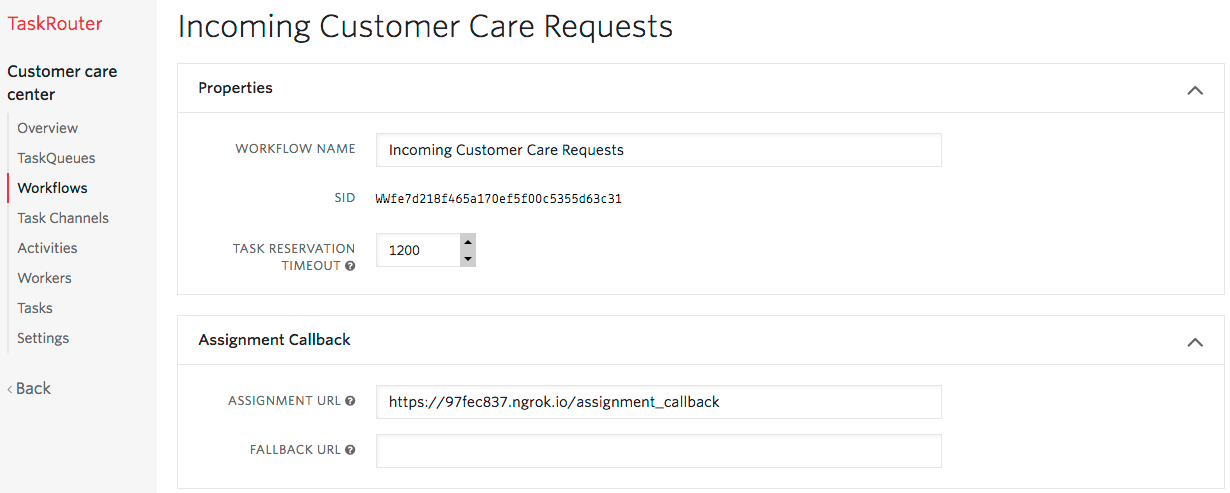

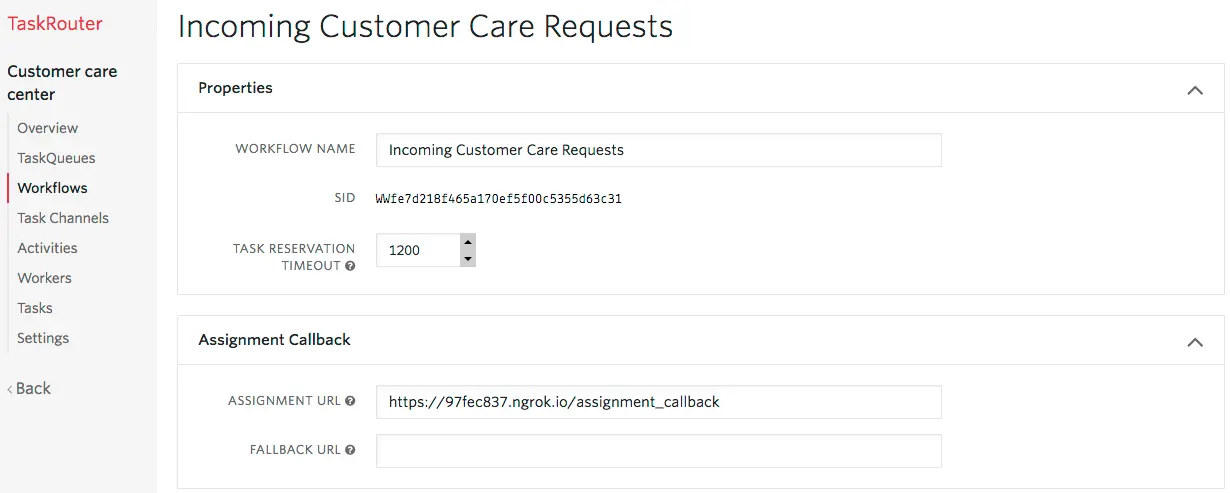

Next, reset your Workflow's Assignment Callback URL as shown below to point to your new, running Flask server's path.

Expand image

To generate a Task, visit the /create_task route we have just defined.

Alternatively, we can also create a Task using the command line utility curl, which should exist on any Mac or Linux workstation. Execute the following command at your terminal, making sure to replace the {} with your ngrok forwarding URL:

1
curl -X POST https://taskrouter.twilio.com/v1/Workspaces/{WorkspaceSid}/Tasks
2
--data-urlencode Attributes='{"selected_language": "es"}'
3
-d WorkflowSid={WorkflowSid}
4
-u {AccountSid}:{AuthToken}

If you don't have curl, you can run this request using an HTTP test tool or using the Task creation dialog in the TaskRouter web portal: with your Workspace open, click 'Tasks' then 'Create Task'.

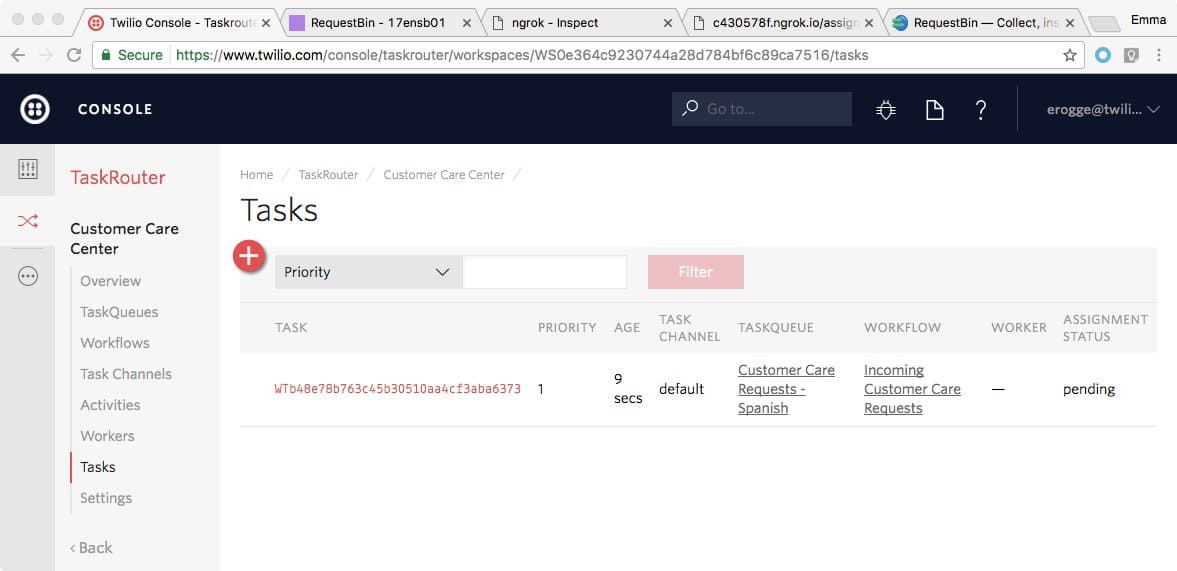

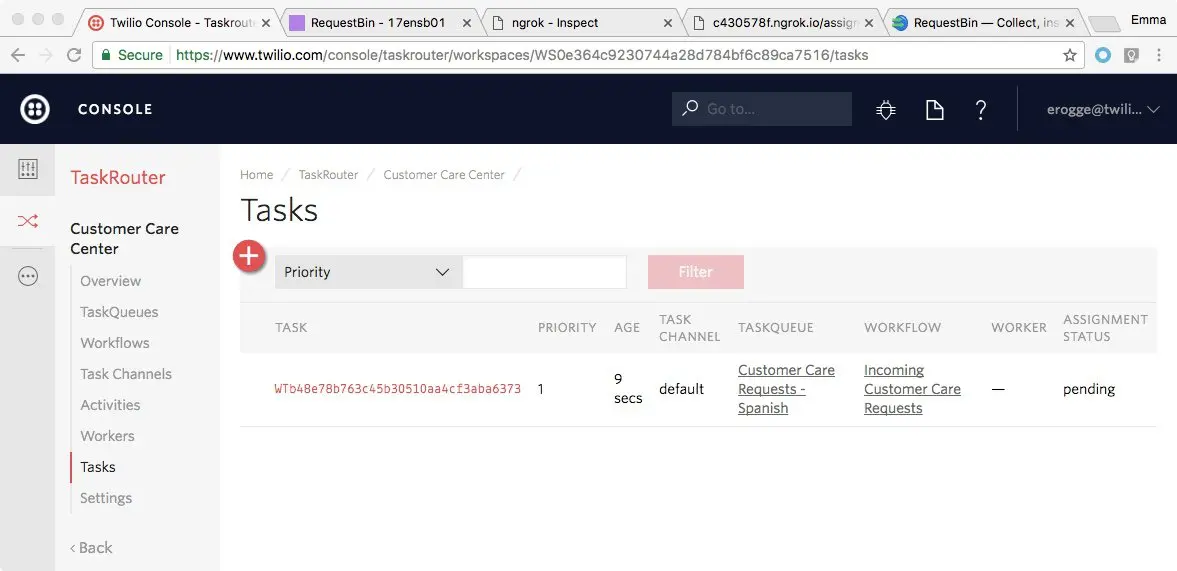

To see our newly created Task in the TaskRouter web portal, with your Workspace open, click 'Tasks' in the main navigation. Notice that the Task has been added to the "Customer Care Requests - Spanish" Task Queue based on the Attributes we provided in the curl request. The Assignment Status is 'pending' because there is no available Worker that matches the Task Queue:

Expand image

Look again at the TaskRouter Task lifecycle:

Task Created → eligible Worker becomes available → Worker reserved → Reservation accepted → Task assigned to Worker.

The first stage - 'Task Created' - is complete. To trigger an automatic Task Reservation, the next step is to bring an eligible Worker online.

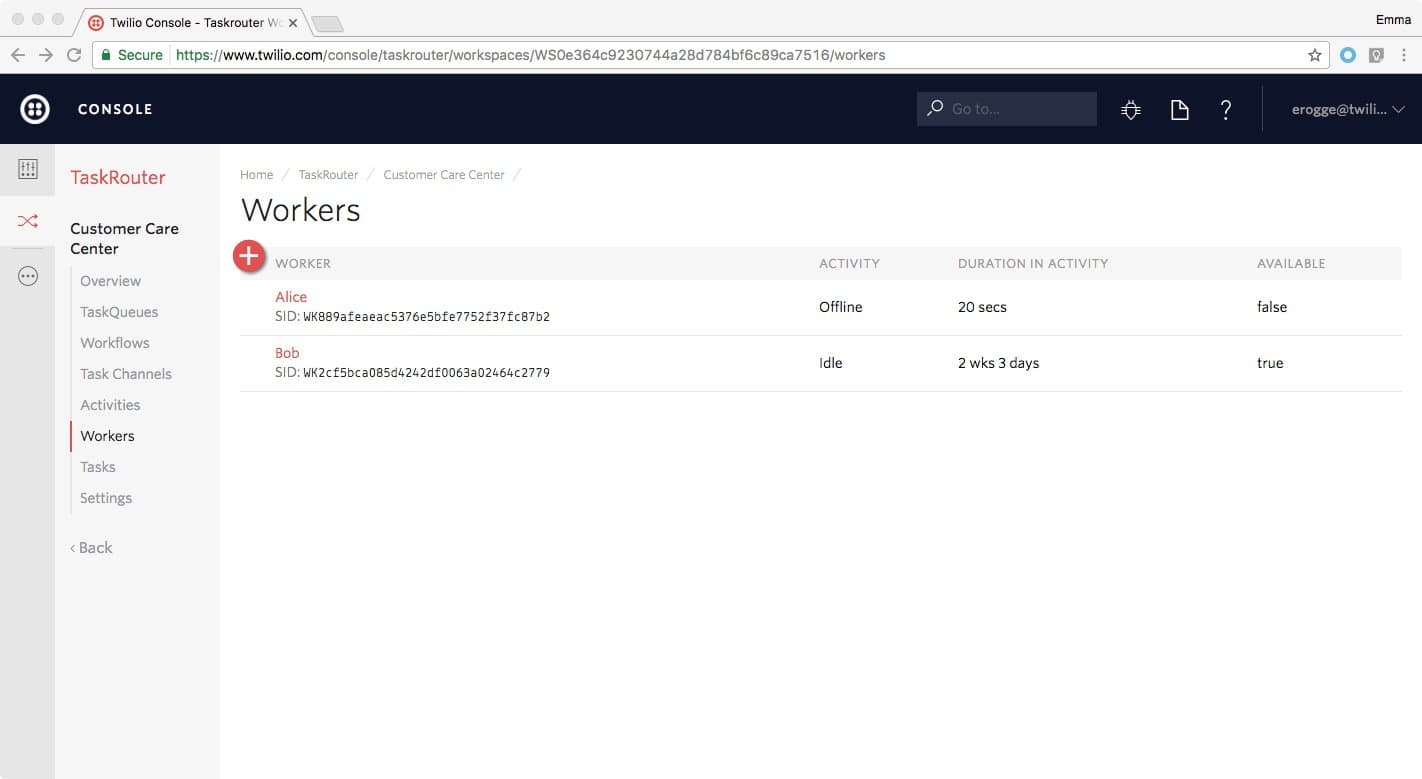

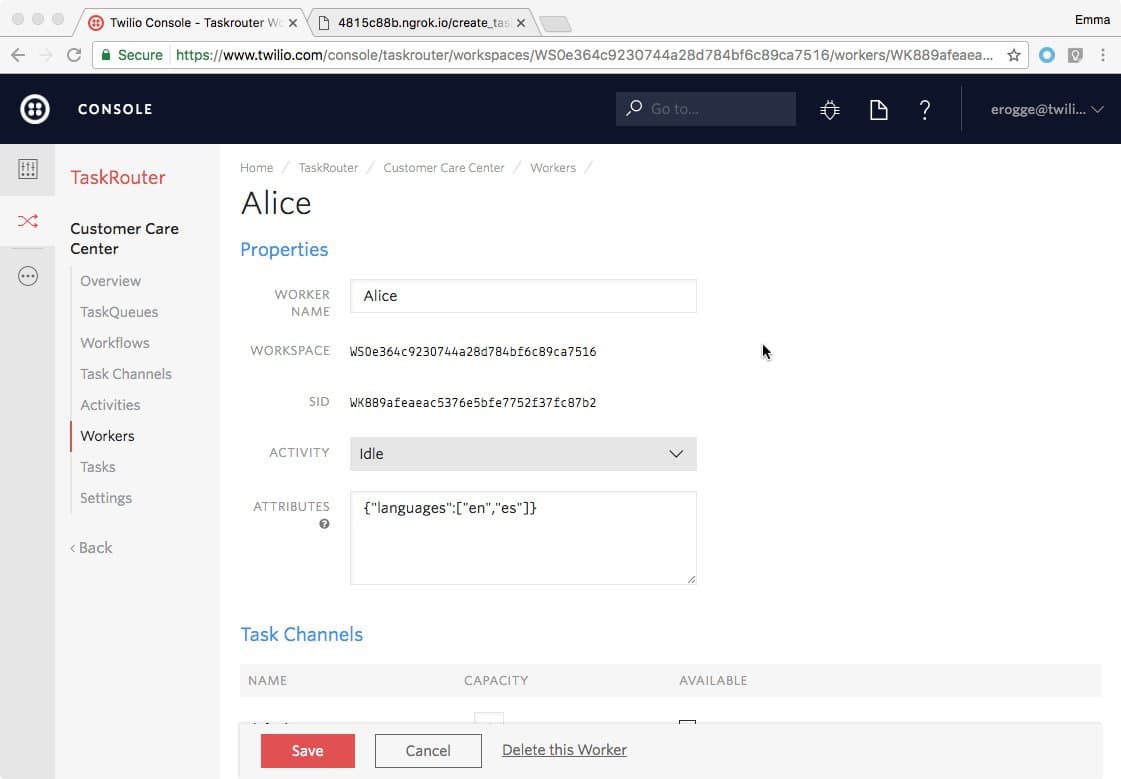

Therefore, with your Workspace open in the TaskRouter web portal, click 'Workers', then click to edit Alice and set her Activity to 'Idle':

Expand image

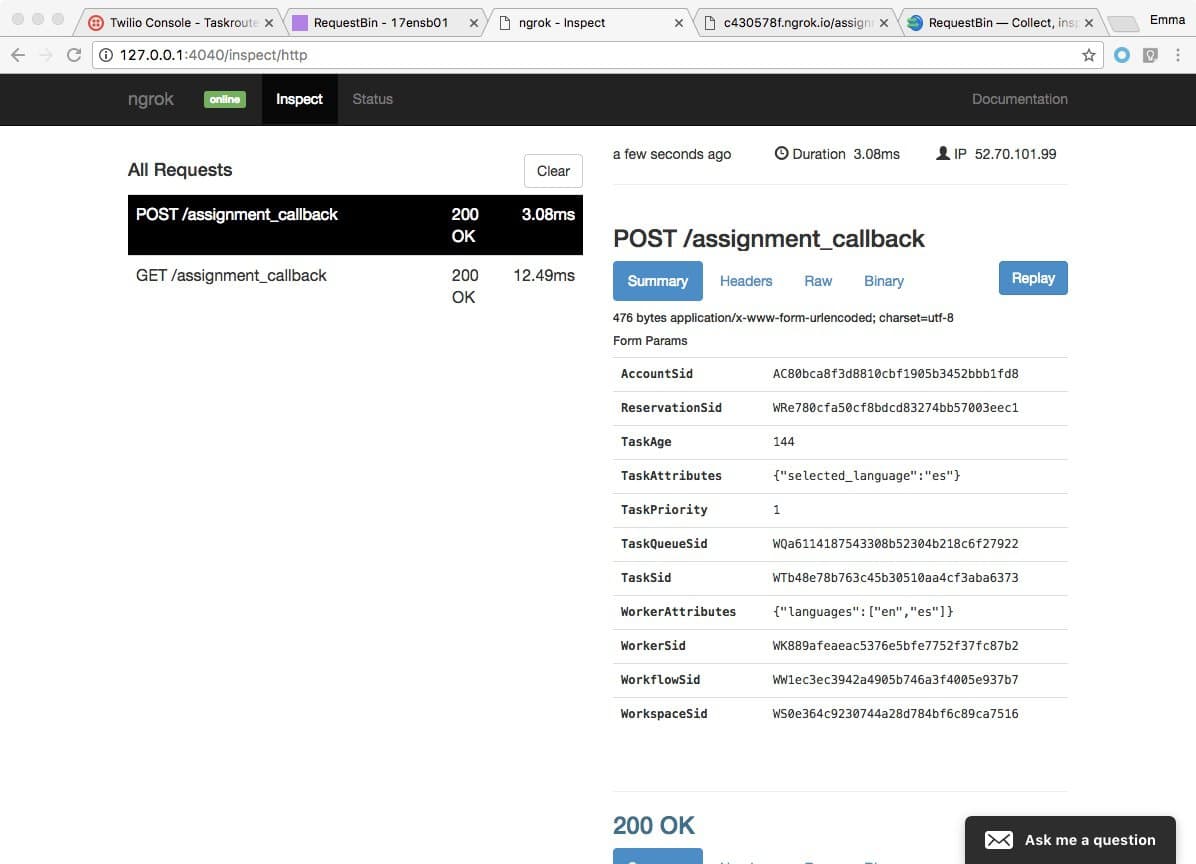

When you hit save, Twilio will create a Reservation between Alice and our Task and you will receive a Webhook request at the Assignment Callback URL that we set up in the previous step. If you're using ngrok, open http://localhost:4040 in your web browser to see a detailed log of the request that Twilio made to your server, including all the parameters that your server might use to determine whether to accept a Reservation:

Expand image

We're now one step further along the Task Reservation lifecycle:

Task Created → eligible Worker becomes available → Worker reserved → Reservation accepted → Task assigned to Worker.

Time to accept the Reservation.

Next: Accept a Reservation with the REST API »
