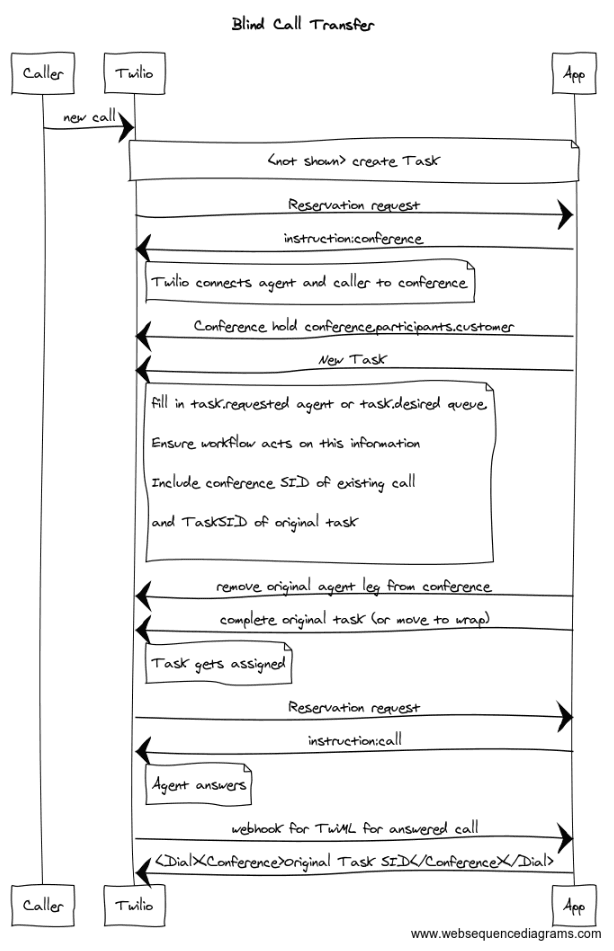

title Blind Call Transfer
2

3

4

5
Caller->Twilio: new call
6

7
note over Twilio, App: <not shown> create Task
8

9
Twilio->App: Reservation request
10

11
App->Twilio: instruction:conference
12

13
note right of Twilio: Twilio connects agent and caller to conference
14

15
App->Twilio: Conference hold conference.participants.customer
16

17
App->Twilio: New Task
18

19
note right of Twilio:
20

21
fill in task.requested_agent or task.desired_queue.
22

23
Ensure workflow acts on this information
24

25
Include conference SID of existing call
26

27
and TaskSID of original task
28

29
end note
30

31
App->Twilio: remove original agent leg from conference
32

33
App->Twilio: complete original task (or move to wrap)
34

35
note right of Twilio: Task gets assigned
36

37
Twilio->App: Reservation request
38

39
App->Twilio: instruction:call
40

41
note right of Twilio: Agent answers
42

43
Twilio->App: webhook for TwiML for answered call
44

45
App->Twilio: <Dial><Conference>Original Task SID</Conference></Dial>

1

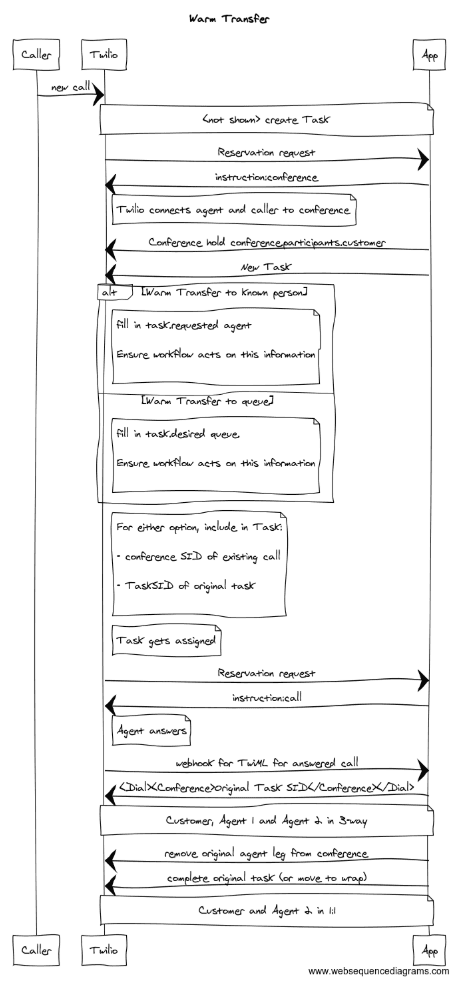

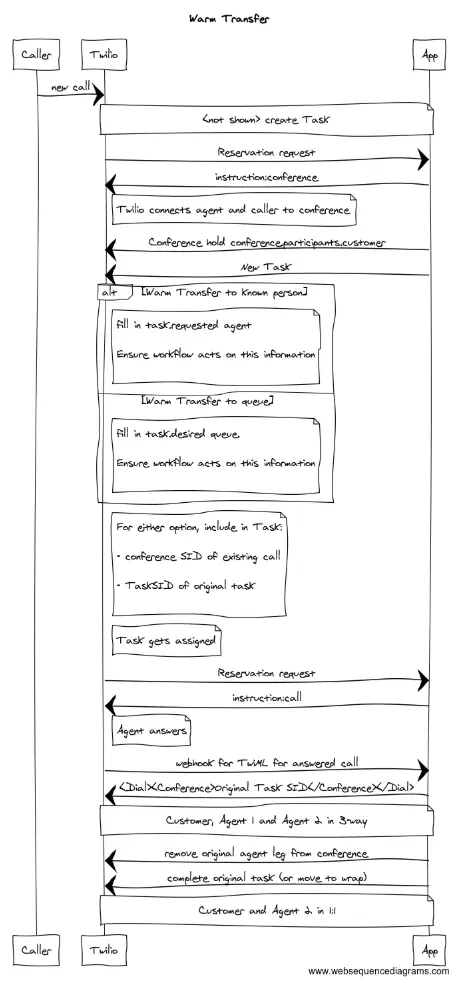

title Warm Transfer
2

3

4

5
Caller->Twilio: new call
6

7
note over Twilio, App: <not shown> create Task
8

9
Twilio->App: Reservation request
10

11
App->Twilio: instruction:conference
12

13
note right of Twilio: Twilio connects agent and caller to conference
14

15
App->Twilio: Conference hold conference.participants.customer
16

17
App->Twilio: New Task
18

19
alt Warm Transfer to known person
20

21
   note right of Twilio:
22

23
   fill in task.requested_agent
24

25
   Ensure workflow acts on this information
26

27
   end note
28

29
else Warm Transfer to queue
30

31
   note right of Twilio:
32

33
   fill in task.desired_queue.
34

35
   Ensure workflow acts on this information
36

37
   end note
38

39

40

41
end
42

43
note right of Twilio:
44

45
For either option, include in Task:
46

47
- conference SID of existing call
48

49
- TaskSID of original task
50

51
end note
52

53
note right of Twilio: Task gets assigned
54

55
Twilio->App: Reservation request
56

57
App->Twilio: instruction:call
58

59
note right of Twilio: Agent answers
60

61
Twilio->App: webhook for TwiML for answered call
62

63
App->Twilio: <Dial><Conference>Original Task SID</Conference></Dial>
64

65
note over Twilio, App: Customer, Agent 1 and Agent 2 in 3-way
66

67
App->Twilio: remove original agent leg from conference
68

69
App->Twilio: complete original task (or move to wrap)
70

71
note over Twilio, App: Customer and Agent 2 in 1:1
