Call Insights Dashboard
Learn about the Call Insights dashboard, a real-time dashboard and aggregation tool that lets you monitor voice communication performance, filter metrics on specific dimensions, and troubleshoot call connectivity and audio quality issues. You can use this guide to send voice notifications, automate self-service tasks, create inbound contact centers, create outbound contact centers, create AI agents, track calls, and connect to the public switched telephone network (PSTN).
See Related reference documentation to learn more about the API call resources and dashboard metrics used in this guide.
The Insights Dashboard is an aggregation tool that lets you filter on specific dimensions like call type, timeframe, number prefix, and country code. The Dashboard automatically updates its visualizations based on the filter criteria. To access the Insights Dashboard in Twilio Console, go to Monitor > Insights > Voice > Calls. You can also find it in the legacy Console. Key sections of the Dashboard include the total number of calls placed on Twilio, the average length of those calls, who hung up, call completion rate (ASR), calls with high PDD, and calls whose quality performance may have been impacted by network conditions. You can visualize call data in a number of ways for each metric, and you can export calls to .csv.
The user experience of voice communication is measured by two key components - call connectivity and audio quality. Connectivity issues can originate from the user's handset, the last mile link between their phones and the cell tower, their carrier network, or from within Twilio's network. Congestion, spotty coverage, handoff failures and numerous other issues could prevent you from reaching your users, or cause connected calls to drop. Voice Insights Connectivity dashboards enable you to rapidly identify connectivity problems by giving you real-time visibility into four key metrics:
- Connection Rate: The percent of total calls that reached the destination. Canceled and failed calls are excluded from this calculation.
- High Post Dial Delay (PDD): Calls where the number of seconds elapsed between dialing the last digit of the phone number and the start of ringing exceeds local thresholds. High PDD can sometimes be reported as "dead air", "one way audio", or even "dropped calls".
- Network Affected: Percentage of calls adversely affected by poor network quality. Issues that indicate poor network quality include: packet loss, jitter, and latency.
- Who Hung Up: Breakdown of calls in which the SIP BYE message was received from the caller or callee. The BYE message signals the termination of an answered call. Calls that have not been answered will not have a BYE, so they will be excluded from the results.

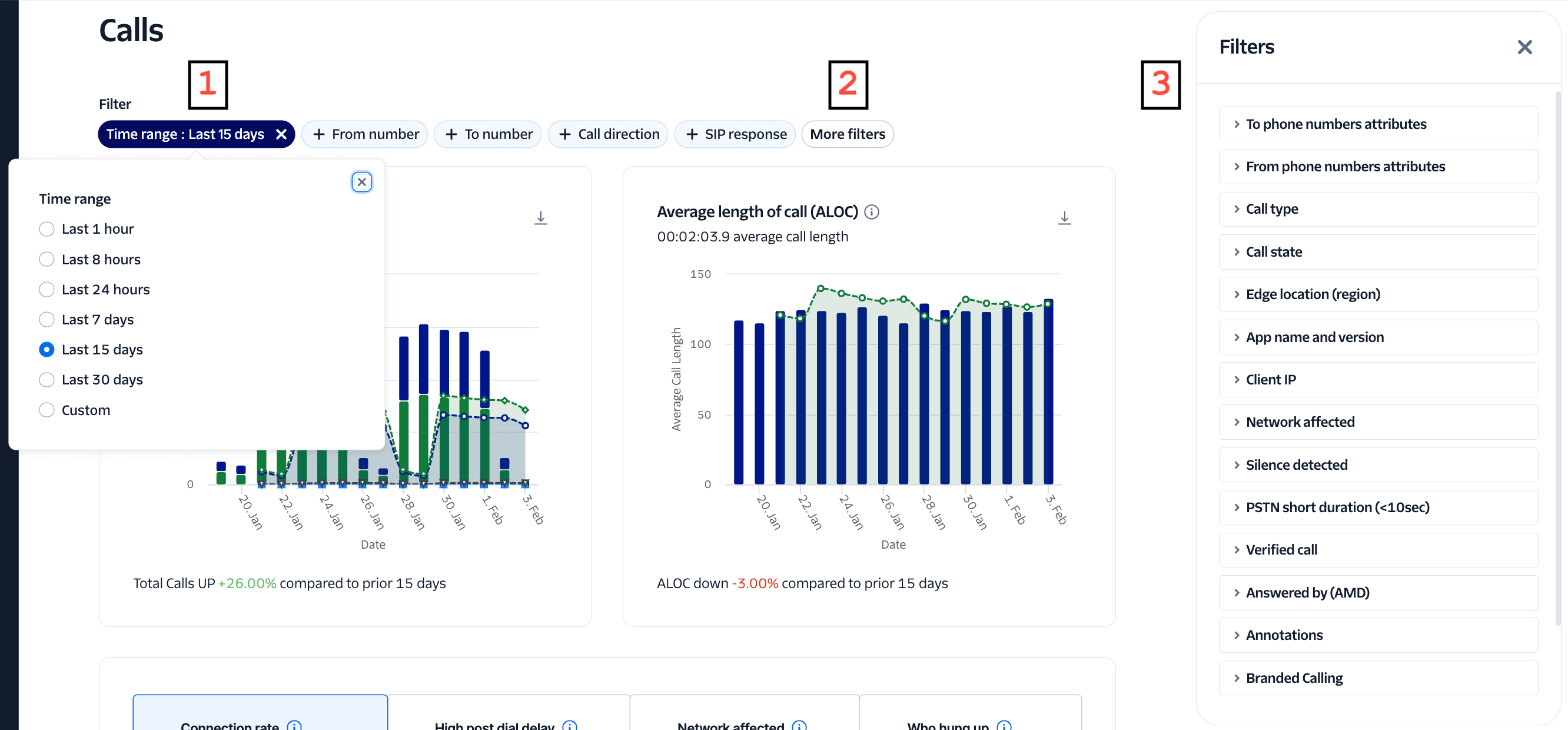

Start by selecting the filters as shown below.
1. Time Range Picker: Select the desired time frame for the data.
2. Filter Selector: Clicking on the Filter Builder opens the Filter Builder panel on the right-hand side.
3. Filter Builder: You can narrow down the metrics you are viewing by choosing to view the data for a specific phone number, number prefix, country, device type, or user's carrier network. The applicable filters are listed below.
| Filter | Description |
|---|---|
| To Phone Number | The phone number of the called party |
| From Phone Number | The phone number of the calling party |
| To Client Name | Registered Client name of the called party; e.g. client:alice. Voice SDK calls only. |
| From Client Name | Registered Client name of the calling party; e.g. client:alice. Voice SDK calls only. |
| Verified Caller | True/false. True indicates the caller ID has been received SHAKEN/STIR attestation value of A. Any other value, or absent attestation will be false. |
| Branded Call | True/false. True indicates that the branded call details were successfully presented to the called party. False indicates that the branded call details were provided, but not successfully presented. |
| Branded Call Caller | Brand name caller ID provided during Branded Call creation. |
| To SIP URI | SIP URI of the called party; e.g. sip:bob@pbx. SIP Interface and Elastic SIP Trunking calls only. |
| From SIP URI | SIP URI of the calling party; e.g. sip:bob@pbx. SIP Interface and Elastic SIP Trunking calls only. |
| To Carrier | The carrier of called party |
| From Carrier | The carrier of the calling party |
| To Country Code | ISO Alpha-2 country code of the called party |
| From Country Code | ISO Alpha-2 country code of the calling party |
| To Device Type | Landline, Mobile, or VoIP connection of the called party |
| From Device Type | Landline, Mobile, or VoIP connection of the calling party |
| To Number Prefix | Country code and area code or exchange for the called party |
| From Number Prefix | Country code and area code or exchange for the calling party |
| SIP Response | The last SIP response code received in the dialog. |
| Call State | The final call status. |
| Network Affected | Carrier, SIP, or Trunking calls tagged with jitter, packet loss, or latency. |
| Network Affected (SDK) | Voice SDK calls tagged with jitter, packet loss, or latency. Twilio Voice SDK calls only. |
| To Browser | Browser used to answer WebRTC calls. Voice JavaScript SDK only. |
| From Browser | Browser used to place WebRTC calls. Voice JavaScript SDK only. |
| To SDK Type | JavaScript, iOS, or Android. Twilio Voice SDK calls only. |
| From SDK Type | JavaScript, iOS, or Android. Twilio Voice SDK calls only. |
| To SDK Version | Twilio SDK version number. Twilio Voice SDK calls only. |
| From SDK Version | Twilio SDK version number. Twilio Voice SDK calls only. |
| To Client Registration Region | The Twilio region where the Client was registered. Twilio Voice SDK calls only. |
| From Client Registration Region | The Twilio region where the Client was registered. Twilio Voice SDK calls only. |
| Edge Location (Region) | The media region where the Twilio gateway handled media. |
| Client IP Address | The IP address of the Client user. Twilio Voice SDK calls only. |
| App Name | The application name provided when creating the Twilio device in JavaScript, iOS, and Android SDKs. |
| App Version | The application version provided when creating the Twilio device in JavaScript, iOS and Android SDKs. |
| Call Direction | The type of call and associated direction: inbound, outbound API, outbound <Dial>, trunking originating, trunking terminating. |
| Silence Detected | True/false. True indicates Twilio detected silence on one of the media streams for the call. Depending on your use case, silence may be expected; e.g. one-time password delivery. |
| Answered by (AMD) | The Answered By value for the summarized call based on Answering Machine Detection (AMD). One of unknown, machine_start, machine_end_beep, machine_end_silence, machine_end_other, human or fax. Refer to AMD for more detail. |
| Annotations: Answered By | A filter for subjective feedback identifying who answered the call. One of machine or human. |
| Annotations: Spam | True/False. A filter for subjective feedback identifying if the call was spam or not. |
| Annotations: Call Score | A filter for subjective feedback regarding call score. A range of 1-5 indicates the call experience score, with the following mapping as a reference for the rated call [5: Excellent, 4: Good, 3 : Fair, 2 : Poor, 1: Bad]. |
| Annotations: Connectivity Issues | A filter for subjective feedback regarding call connectivity issues. One of no_connectivity_issue, invalid_number, caller_id, dropped_call, or number_reachability. |
| Annotations: Quality Issues | A filter for subjective feedback regarding call quality issues. One of no_quality_issue, low_volume, choppy_robotic, echo, dtmf, latency, owa, static_noise. |

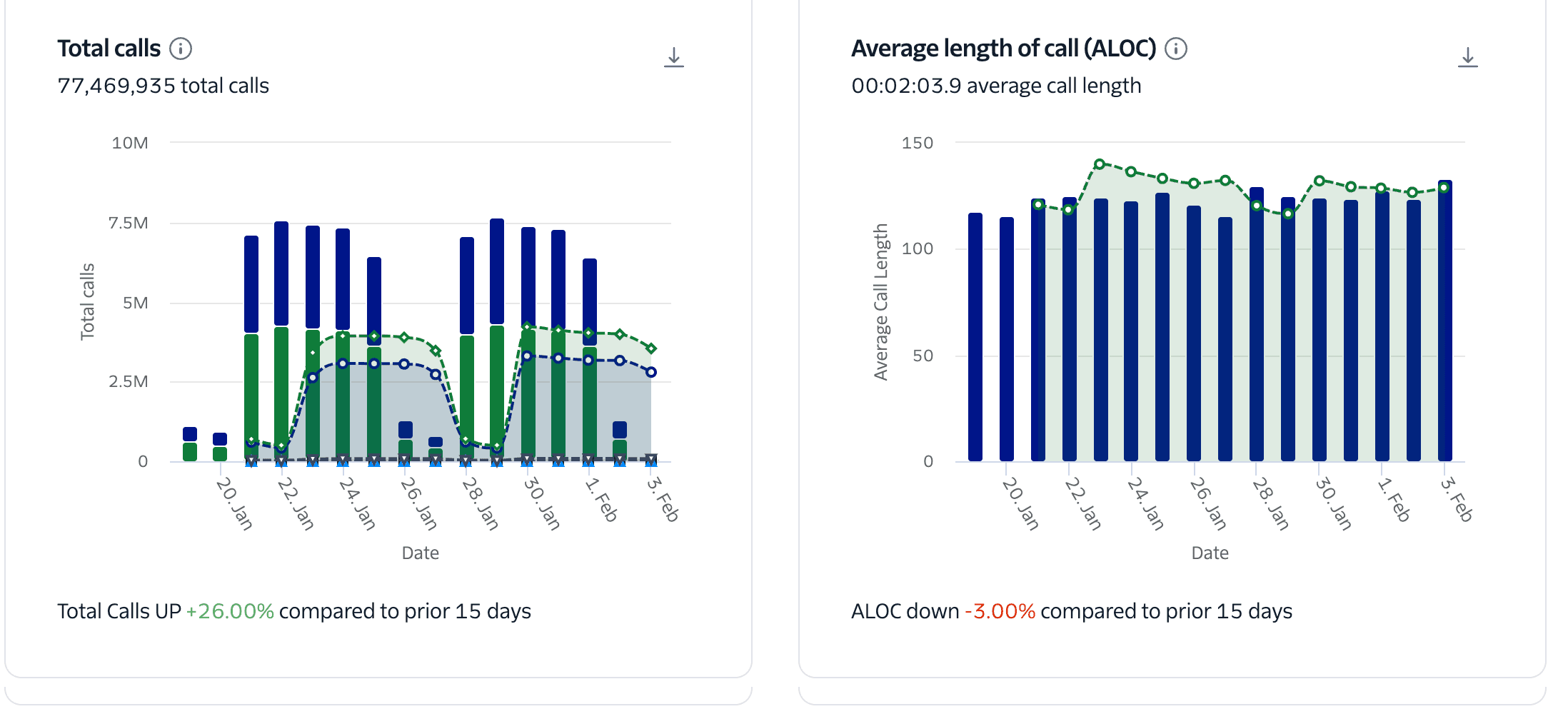

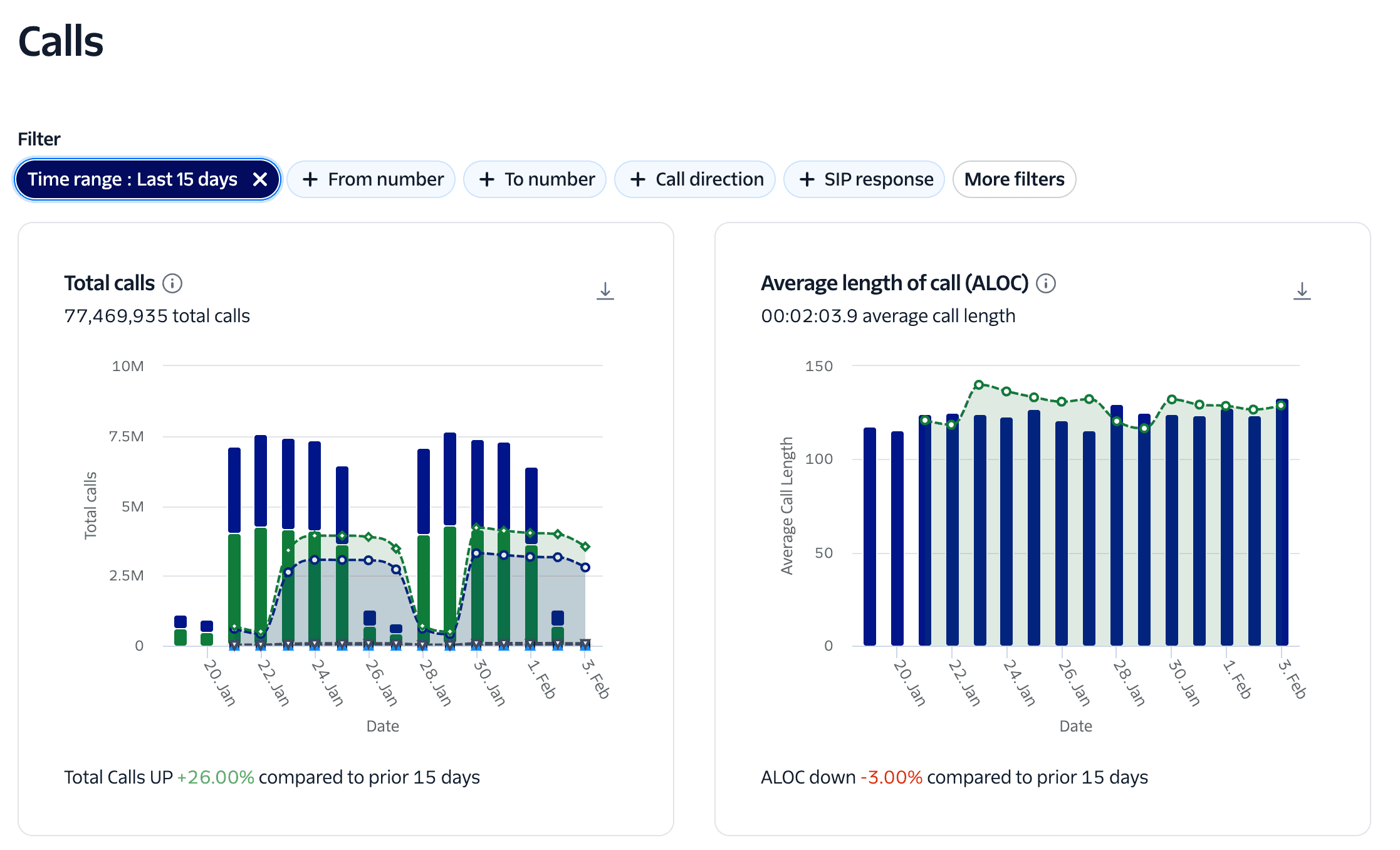

Our trends graphs show comparisons of call volume and average length of call (ALOC) for the selected time frame. Call volume and ALOC are classic telecom metrics and changes in these should be investigated closely; for example, a very common pattern when a quality problem is introduced is the number of calls to increase, while the ALOC goes down. This is due to people being dissatisfied with the quality of their experience, ending the call early, and placing another call (or calls) in an attempt to get an acceptable experience. You can also select-to-zoom on these graphs for greater detail.
| Total Calls | Total number of Twilio calls made from this account over the selected date range. |
|---|---|
| Average Length of Call | Sum of duration of all calls divided by the total number of completed calls made from the account. |

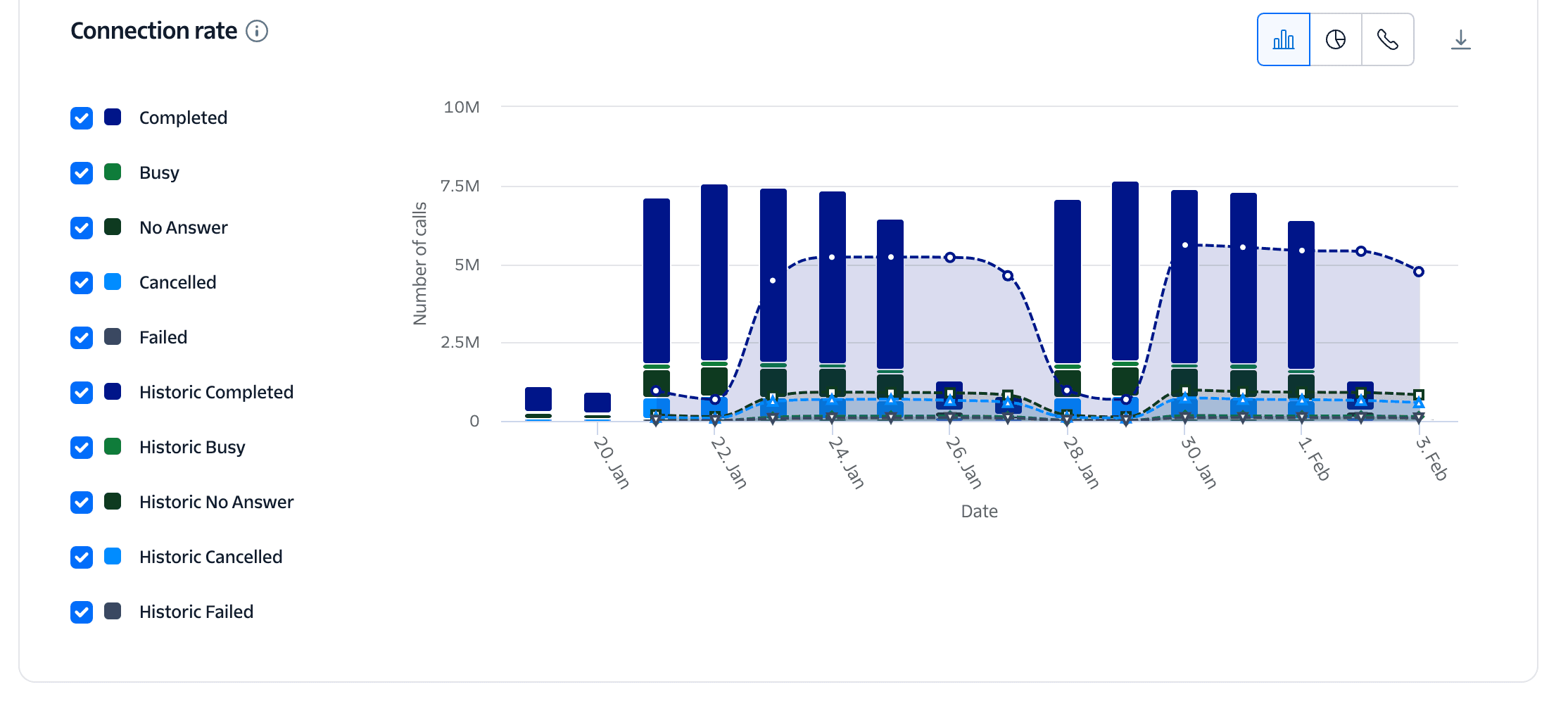

Connection Rate allows you to filter by call state.

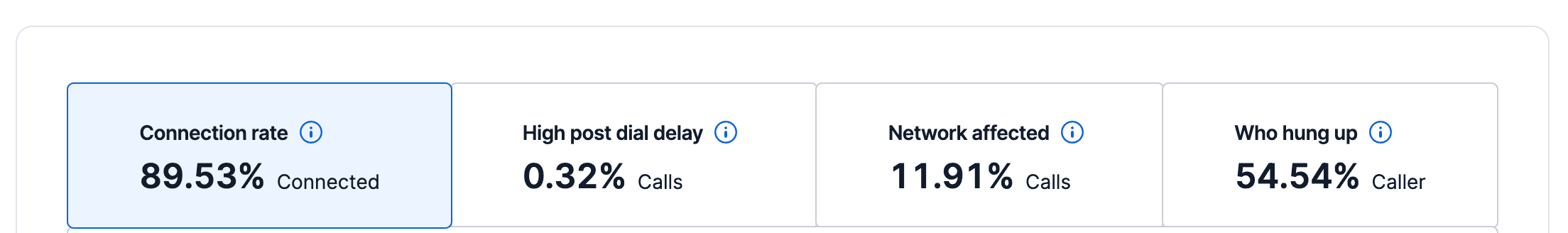

The Voice Insights account-level dashboards provide trends on the following metrics:
| Metric | Description |
|---|---|
| Who Hung Up | Who disconnected the call, based on the direction of the SIP BYE event. Percentage is calculated based on the total number of errors with respect to the total calls. |
| Connection Rate | Total calls completed with respect to the total number of calls. Documentation for the applicable call status values is here. |
| High PDD | Post-dial-delay (PDD) is the number of seconds elapsed between dialing the last digit of the phone number and the start of ringing. The tab represents percentage of total calls with high Post-Dial-Delay (PDD), compared against 99th percentile of all Twilio calls to the destination country. |
| Network Affected | This tab shows percentage of calls adversely affected by poor network quality. Issues that indicate poor network quality include packets arriving out of order (jitter), never arriving (packet loss), and taking a long time to arrive (latency). For Carrier and SIP/Trunking call types, high packet loss is defined as 5% cumulative packet loss, high jitter is defined as average jitter of more than 5 milliseconds, and high latency is defined as Twilio-internal RTP traversal time of greater than 150 milliseconds. For SDK calls high jitter is defined as 30 milliseconds or higher for 3 out 5 consecutive samples, and high packet loss at 1% or higher for 3 out of 5 consecutive samples. |

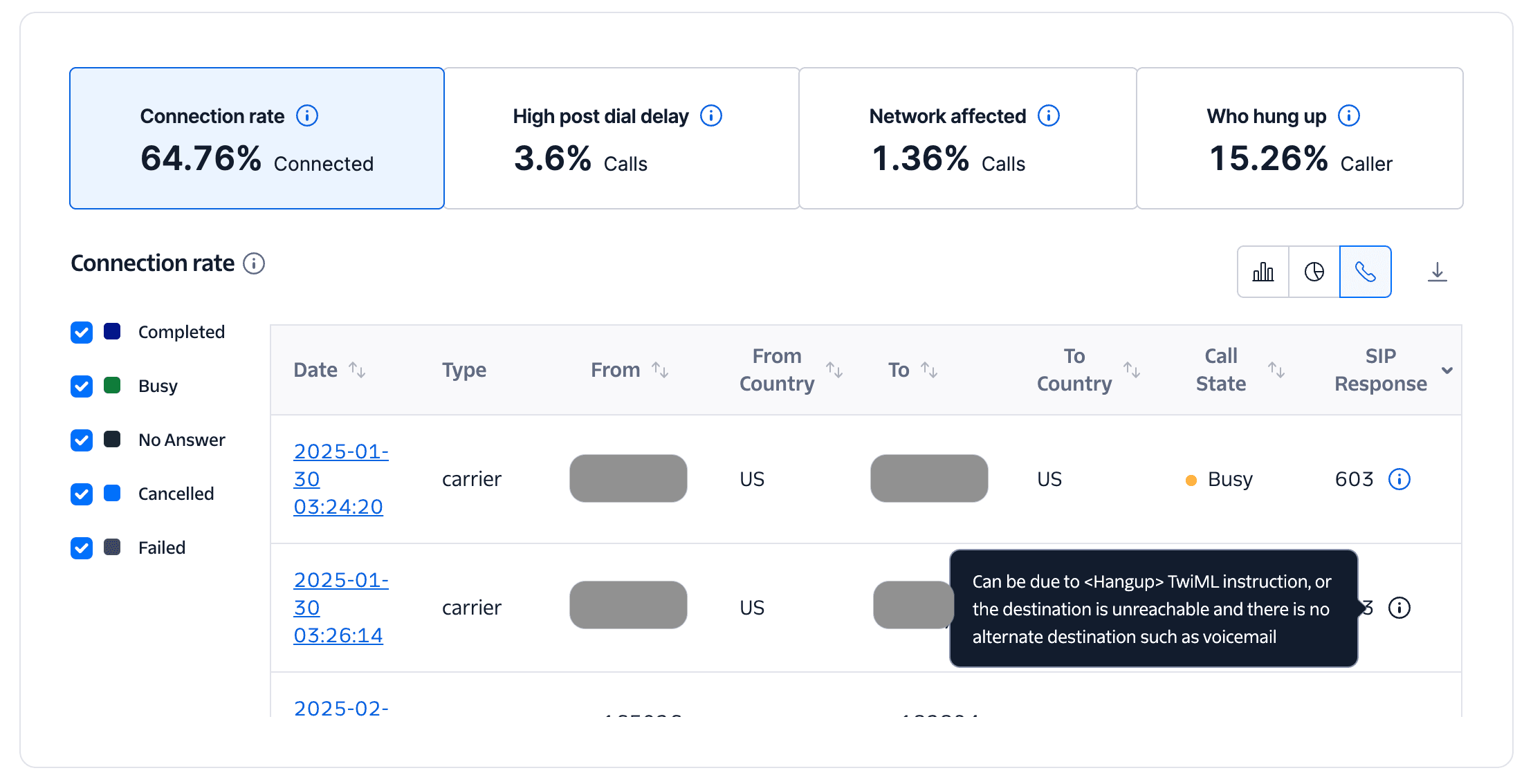

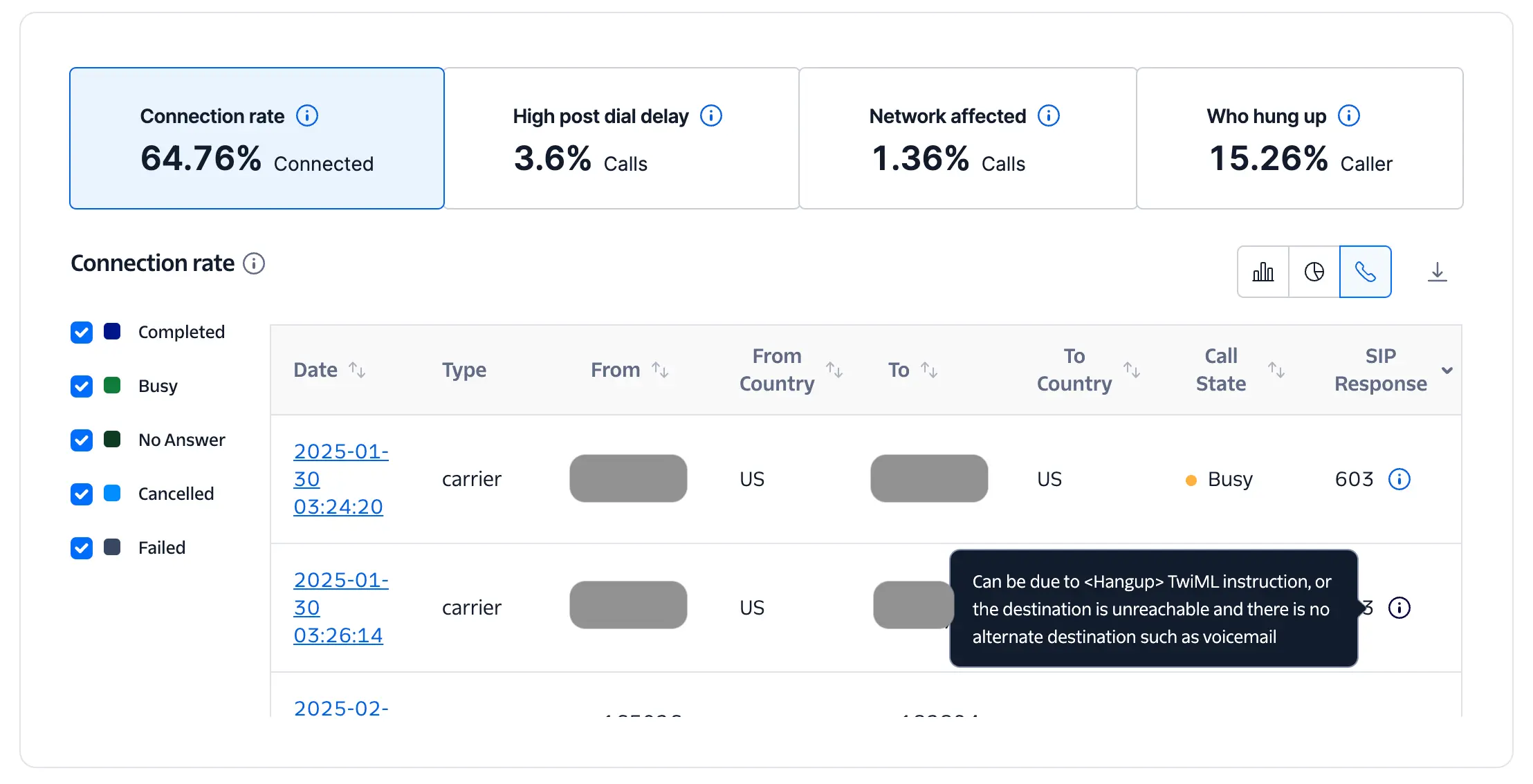

The call logs view helps you drill down into a subset of calls with specific issues. To get to the call logs, click on the phone icon towards the right of the screen as shown below. Up to 2000 results can also be exported to a comma-separated value file.
This guide covers a feature that can support the following use cases:
You can use the feature in this guide to get quality analytics and connection trends whenever you send voice notifications using your app. For example, you can programmatically call customers to notify them of important updates, such as emergency weather closings, and learn how many calls connect successfully. To learn more advanced features that you can use with voice notifications, see Voice notifications.
You can use the feature in this guide to get insights whenever you automate outbound calls that gather user input using the keypad. For example, you can create appointment reminders that allow customers to confirm, cancel, or reschedule their appointment by pressing a number on their keypad, and track how many customers respond. To learn more advanced features that you can use with self-service automation, see Voice self-service automation.
You can use the feature in this guide to get real-time visibility into metrics like call completion rates and high post-dial delays for your programmatic inbound contact center that handles customer inquiries. To learn more advanced features that you can use with inbound contact centers, see Voice inbound contact center.
You can use the feature in this guide to monitor network-affected percentages and carrier performance for your outbound contact center that dials customers for marketing or support. To learn more advanced features that you can use with outbound contact centers, see Voice outbound contact center.
You can use the feature in this guide to analyze audio quality data and disconnect trends for calls routed through your smart virtual agents. To learn more advanced features that you can use with AI agents, see AI agents.
You can use the feature in this guide to map caller prefixes, carrier networks, and phone numbers to evaluate marketing campaign conversion rates. To learn more advanced features that you can use with call tracking, see Voice call tracking.
You can use the feature in this guide to troubleshoot public network connection failures and minimize high post-dial delay across worldwide carriers. To learn more advanced features that you can use with PSTN connectivity, see Voice PSTN connectivity.
You can use the feature in this guide to verify network and audio stability whenever you capture call audio for real-time speech-to-text models or post-call processing. To learn more advanced features that you can use with AI or ML transcription, see Voice AI/ML transcription.
