Customize the Email in Flex UI

(warning)

Not a HIPAA Eligible Service

Email in Twilio Flex is not a HIPAA Eligible Service and should not be used in workflows that are subject to HIPAA.

Email in Flex uses the same programmable model as other parts of the Flex UI. This means that you can add, replace, and remove email editor components or invoke various actions related to email in Flex UI. This section describes the dedicated components and actions in Email in Flex, as well as some ideas for how to use them.

Email UI components

Flex UI has two main components for email: the email editor and the email messages themselves.

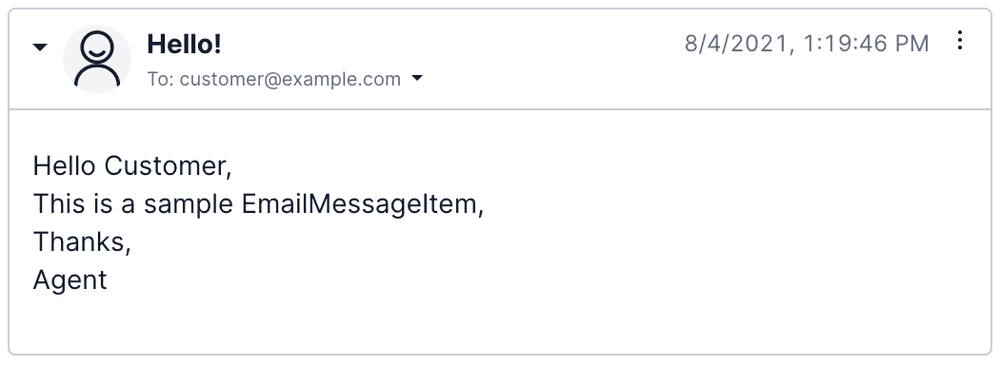

EmailMessageItem

EmailMessageItem contains an accordion that displays the email message. You can replace it with a custom component or add components before or after it.

1const CustomMessage = (props: EmailMessageItemChildrenProps) => {
2    return <div>custom message</div>;
3};
4
5Flex.EmailMessageItem.Content.replace(<CustomMessage key="custom" />);
6
7

The replaced or added components receive the following props:

1export interface EmailMessageItemChildrenProps {
2   message: MessageState;
3   defaultOpen?: boolean;
4   avatarUrl: string;
5   conversationSid: string;
6}

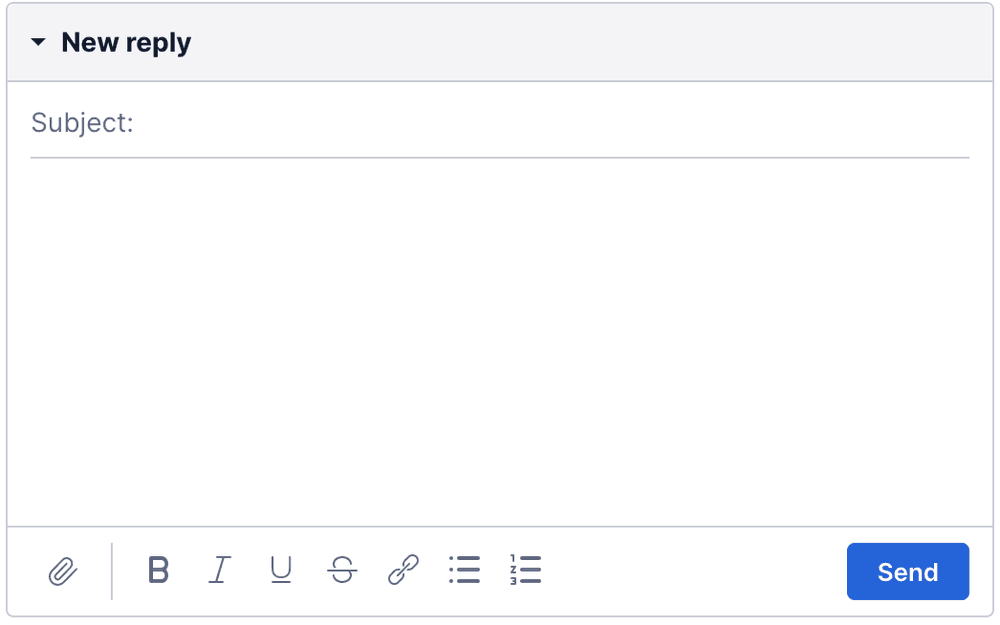

EmailMessageEditor

The EmailEditor contains an accordion. You can replace the accordion with custom components, or add components before or after it.

1const CustomEditor = (props: EmailEditorChildrenProps) => {
2   return <textarea>custom content</textarea>;
3};
4
5Flex.EmailEditor.Content.replace(<CustomMessage key="custom" />);

The replaced or added components receive the following props:

1export interface EmailEditorChildrenProps {
2   disabledReason: string;
3   charLimit: number;
4   conversationSid: string;
5   conversation: ConversationState;
6   messageState: MessageState;
7   connectionState: string;
8}

Email Actions

Email in Flex uses the Actions Framework to allow you to modify UI interactions. The following actions are standard for sending messages in Flex:

SetInputText
- This action supports HTML in input text.
SendMessage

The actions for Email in Flex are:

AttachFiles

Attaches files to the message the agent is drafting.

1Flex.Actions.invokeAction("AttachFiles", {
2   files: [file1, file2],
3   conversationSid: "CHxxxxxxxxx",
4   conversationType: "email"
5});

Property	Description
files	Required. An array of files to be attached.
conversationSID	Required. The SID for the Conversation to which the media files should be attached.
conversationType	Required Type: Email. Enforces validation against Conversations limits (max amount of attached files, max size).

DownloadMedia

Downloads media files attached to a message.

1Flex.Actions.invokeAction("DownloadMedia", {
2   media: media,
3   conversationSid: "CHxxxxxxxxx",
4   conversationType: "email"
5});

Property	Description
media	Required. The Conversations media object to be downloaded.
conversationSID	Required. The SID for the Conversation from which the media will be downloaded..
conversationType	Required Type: Email. Enforces validation against Conversations limits (e.g., max size).

StartOutboundEmailTask

Starts a new task for the worker. The only required argument is destination.

1Flex.Actions.invokeAction("StartOutboundEmailTask", {
2   destination: "customer@address.com",
3   queueSid: "WQxxxx",
4   from: "contactCenter@address.com",
5   fromName: "My contact center name",
6   taskAttributes: {}
7});

Arguments

Property	Description
destination	Required. The address to which the email should be sent.
queueSid	Optional. The queue that the new email task should be added to. Falls back to default email outbound queue.
from	Optional. The from email address. Falls back to default email address.
fromName	Optional. The name associated with the From email address. Falls back to the default email name.
taskAttributes	Optional. TaskAttributes for the created Task. Defaults to an empty object.

Sample use cases

Flex UI 2.x.x uses a similar programmable interface for adding, removing, and updating components and for invoking actions. See the Flex Developer documentation to learn more about working with components and actions.

Set a dynamic email signature

Use the SetInputText action to dynamically update the content of the editor. In the following example, the email signature is set using the worker's attributes before they've even written their email.

1const { full_name, email } = Twilio.Flex.Manager.getInstance().workerClient.attributes;
2
3Twilio.Flex.Actions.invokeAction("SetInputText", {
4   body: <div><p>Your message here</p><p style='margin-top:20px; border-top: 2px dashed; color: tomato; padding-top:20px'>${full_name} - ${email}</p><p style='color:#333333;'>Engineer</p></div>,
5   conversationSid: "CH049a1c27f2f14bc5b8eba3244a846a05"
6});

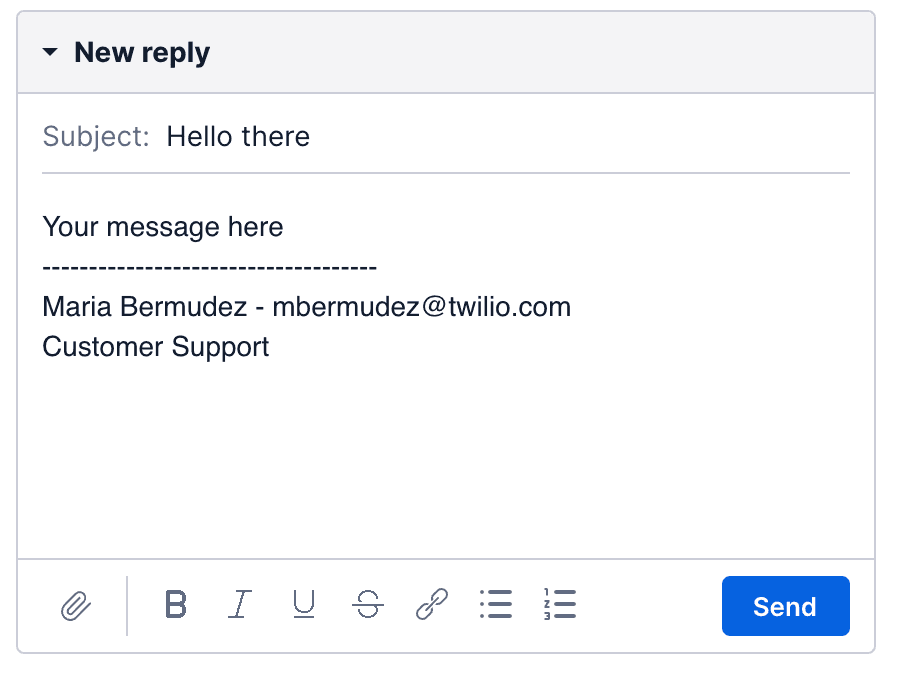

Editor output:

Insert a default response

You can go further and include a default response in the text editor so that agents have a strong template to work from. In this example, the SetInputText action is used alongside the Flex TaskHelper method to populate the response with the customer's name.

1const conversationSid = "CH..."
2const task = Twilio.Flex.TaskHelper.getTaskFromConversationSid(conversationSid);
3
4Twilio.Flex.Actions.invokeAction("SetInputText", {
5   body: <div><p>Hi ${task.attributes.customerName},  thanks for your email. </p><p>Regards,  Owl Customer Centre</p></div>,
6   conversationSid,
7})

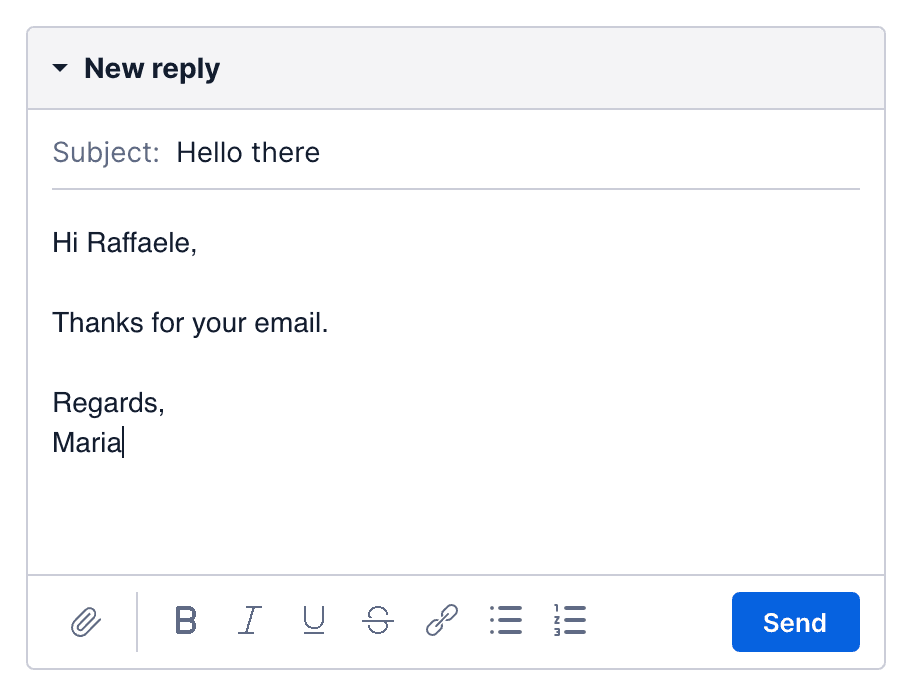

Editor output:

Automatically add a disclaimer

You can automatically inject text after (or before) the agent message by adding the beforeSendMessage listener to Flex Actions. In this example, the code appends a confidentiality disclaimer before sending the email. The agent won't see this change in their HTML editor, but they will see it in the sent message.

1Twilio.Flex.Actions.addListener("beforeSendMessage", (payload) => {
2   payload.htmlBody += <p style="font-size:10px; color:#666; margin-top:20px;">CONFIDENTIAL: This email and any files transmitted [....]</p>;
3});

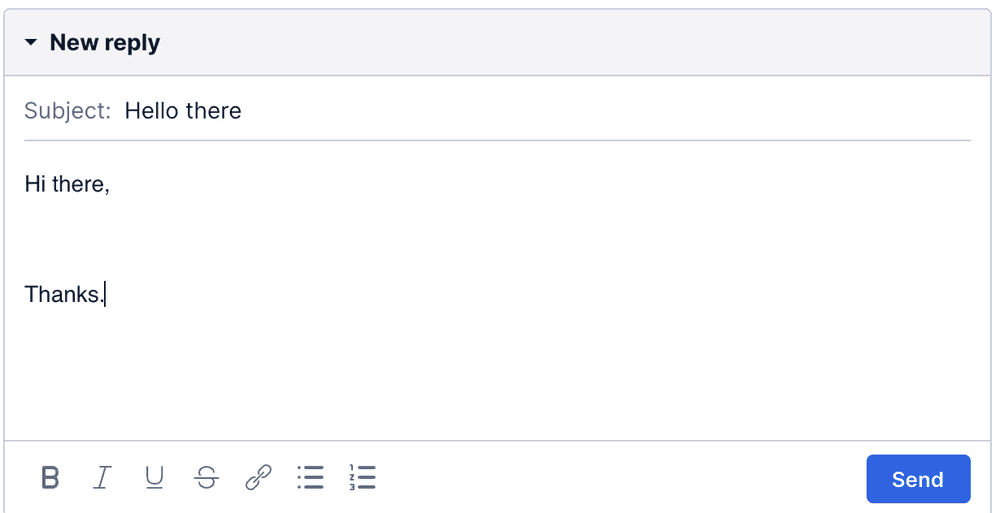

Message in agent's editor:

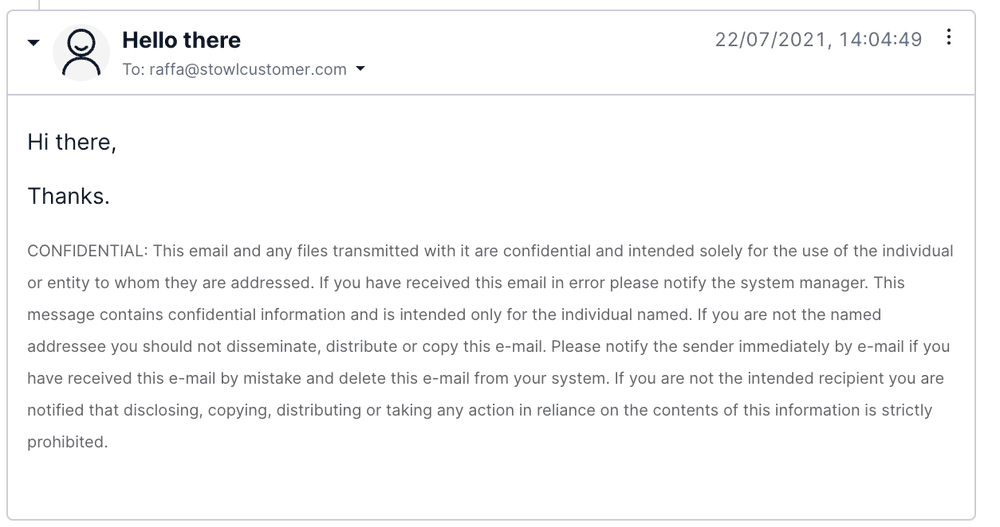

Output message:

Replace placeholder text

You can create message templates by adding the beforeSendMessage listener to Flex Actions. In this example, Flex replaces the $CUSTOMER_NAME variable with the actual name of the customer. The agent won't see this change in their HTML editor, but they will see it in the sent message.

1Twilio.Flex.Actions.addListener("beforeSendMessage", (payload) => {
2   const task = Twilio.Flex.TaskHelper.getTaskFromConversationSid(payload.conversationSid);
3   payload.htmlBody = payload.htmlBody.replace(/\$CUSTOMER_NAME\$/g, task.attributes.customerName);
4})

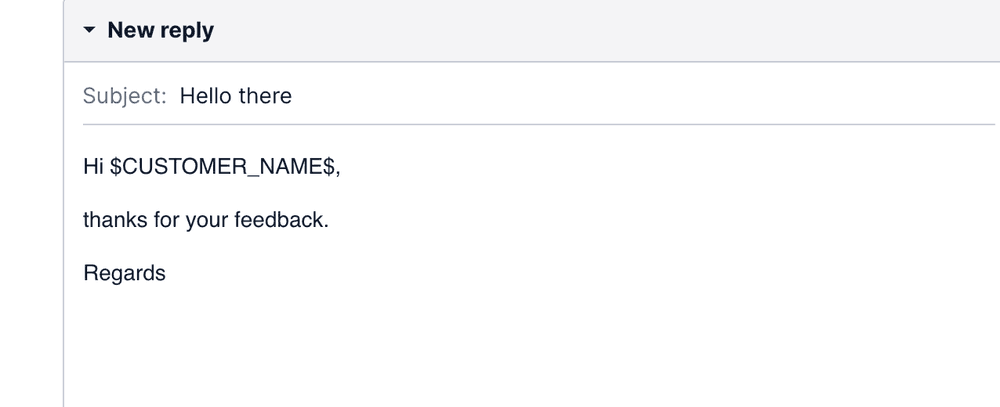

Message in agent's editor:

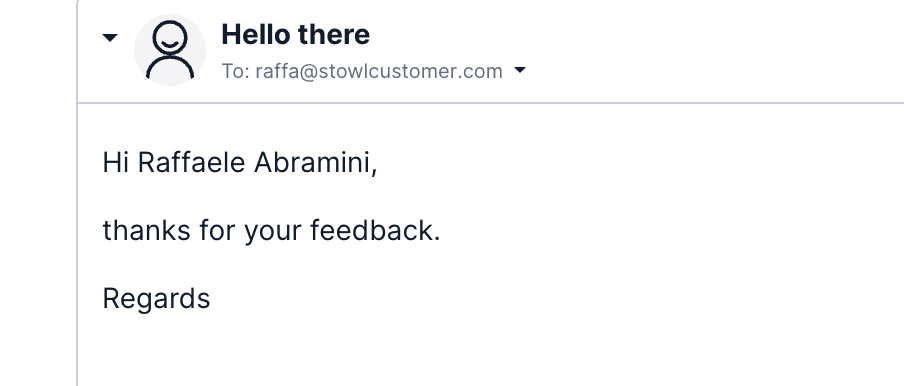

Output message:

Next Steps

Start using Conversations to interact with email contents on the fly

< Email index page
