Voice JavaScript SDK: Edge Locations

By default, the Twilio Voice JavaScript SDK will use Twilio's Global Low Latency (the roaming edge location) routing capability to determine which data center is closest to your user, establishing a connection through Twilio's nearest point of presence.

Global Low Latency uses latency-based DNS lookups to determine the nearest data center. You may want to override this in some cases, especially when your users are working from a fixed location and using a DNS server in another edge location.

If you are operating a restricted network that requires allowing of media IPs, our recommendation is to specify the edge location in your application. Twilio will continue to expand our Global Low Latency (the roaming edge location) footprint in the future by adding more edges with different IP ranges and leaving the edge selection up to Global Low Latency could result in connections being established to edges that are not allowed by your infrastructure which may result in one-way audio or call set up failures.

Use any one of the available edge locations as the edge parameter. Leaving the value undefined will cause Twilio to default to its Global Low Latency routing, which cause the Device to establish its connection to the Twilio edge closest to the user.

The examples below show two methods for setting an edge location.

Option 1 instantiates a new Twilio.Device with token and options arguments.

Option 2 instantiates a new Twilio.Device without the options argument. With this method, you can update the device options with device.updateOptions(options).

Option 1:

const device = new Twilio.Device(token, { edge: "dublin" });

Option 2:

1
const device = new Twilio.Device(token);
2
device.updateOptions({ edge: "dublin" });

Option 1:

const device = new Twilio.Device(token, { edge: "ashburn-ix" });

Option 2:

1
const device = new Twilio.Device(token);
2
device.updateOptions({ edge: "ashburn-ix"});

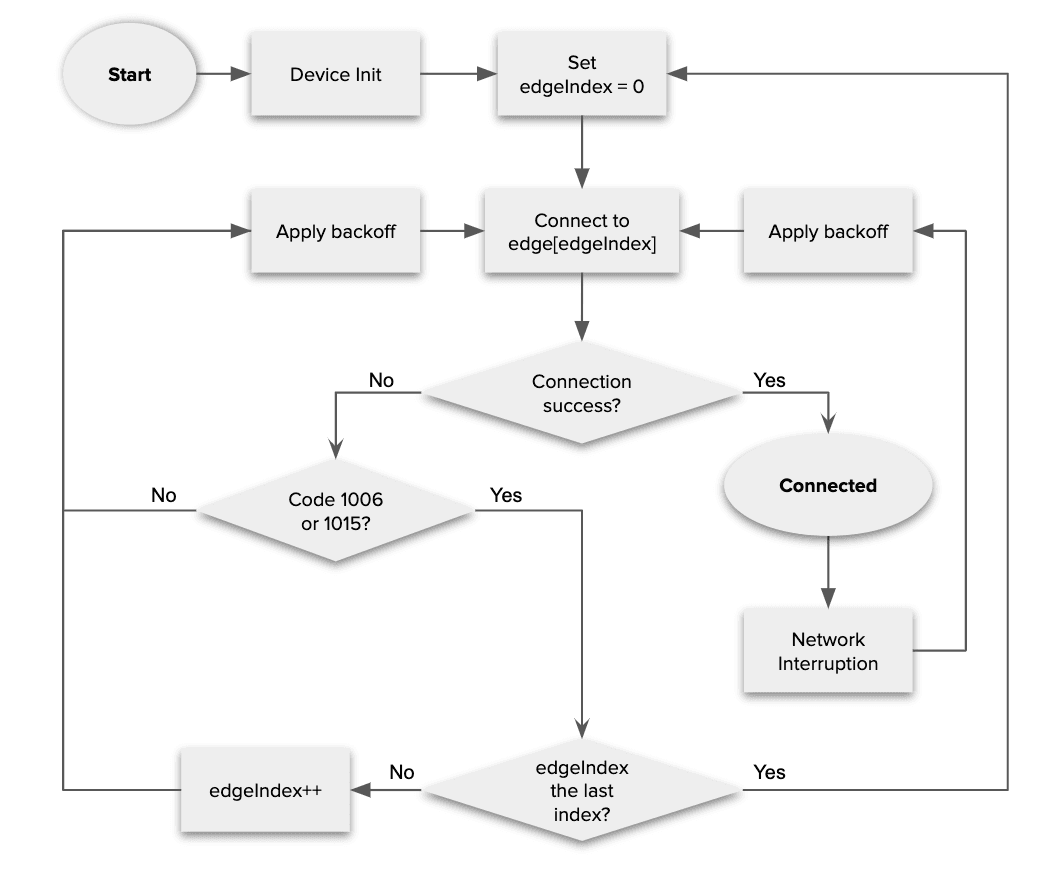

By default, the SDK automatically reconnects the WebSocket connection to the same edge location when it is unreachable, or when the SDK encounters a network error that results in a WebSocket disconnect. But if Twilio.Device.Options.edge parameter is supplied as an array of edge names, the SDK will enable automatic Edge fallback functionality. The diagram below illustrates the logic that is executed to perform the fallback.

Expand image

During initialization, the SDK will use the first edge name in the Twilio.Device.Options.edge array.

If the SDK encounters an error that results in a WebSocket disconnect with error code 1006 or 1015, the SDK will attempt reconnection to the next Edge in the array using an exponential backoff timer with an initial value of 1+random(5) and a maximum of 20 seconds. This maximum delay can be configured via Twilio.Device.Options.backoffMaxMs parameter.

If the SDK encounters an error while already connected to an edge server, the SDK will try to reconnect to the same edge once before attempting to connect to the next edge.

The following table provides common scenarios for when a fallback may occur:

It's important to note that "unreachable" in these scenarios means the SDK failed to establish a WebSocket connection to the edge endpoint which resulted in error code 1006 or 1015. The error code 1015 is a WebSocket close event which is raised when the connection fails to perform a TLS handshake. This happens if the server certificate is invalid or cannot be verified. While the error code 1006 is raised when the connection was dropped unexpectedly and there is no close frame received from the server. The following are common issues that causes 1006:

• The domain name cannot be resolved by the DNS
• The network cannot reach the endpoint due to, for example, a misconfigured firewall
• The client becomes offline due to, for example, the local device losing network connectivity
• In an unlikely and very rare scenario, the Edge and standby servers are down

Signaling connectivity loss is the loss of the signaling websocket, and it usually only occurs when a user experiences a change in network during a call. As of v2.1.0 of the Voice JavaScript SDK, signaling reconnection is fully supported via the DeviceOptions.maxCallSignalingTimeoutMs property included in v2.1.0+ of the SDK. A Twilio.Device will now attempt to reconnect to a lost websocket for up to 30 seconds.

A lost websocket connection can only be reestablished on its original edge. The default edge fallback behavior of the SDK will cause the Twilio.Device to a connection to the original edge one time, and if that attempt fails, it will attempt a connection on the next edge in the DeviceOptions.edge array. If it connects to a new edge, however, reestablishing that lost websocket connection is no longer possible. This will cause the call to disconnect.

You can temporarily pause edge fallback during these signaling reconnection attempts using the DeviceOptions.maxCallSignalingTimeoutMs property. This property sets how long your device should try to reconnect to the original edge during signaling reconnection attempts.

Since the Twilio.Device can attempt to restore signaling connectivity for up to 30 seconds (30000 milliseconds), you likely will want to set your DeviceOptions.maxCallSignalingTimeoutMs property to 30000. This means that your Twilio.Device will not try to connect to any other edge during the entirely of the reconnection attempt.

1
const deviceOptions = {
2
  edge: ['ashburn', 'sydney'],
3
  maxCallSignalingTimeoutMs: 30000
4
}
5

6
const device = new Twilio.Device(token, deviceOptions);
